34mm gold-plated large diaphragm capsule
Cardioid
• Gold-plated large diaphragm capsule, 180° rejection ratio reaches more than 18dB, 135° rejection ratio reaches more than 16dB;
• Cardioid capsule with unique sound cavity to form a super polar pattern, which can effectively prevent whistling.
• Audio transformer output, sound mellow, high fidelity, low noise.
• Audio FET front stage impedance conversion, anti-interference noise.
• Self-innovated anti-humidity technology, can be used normally in a variety of climatic environments.
• The appearance of the atmosphere, elegant, dignified.

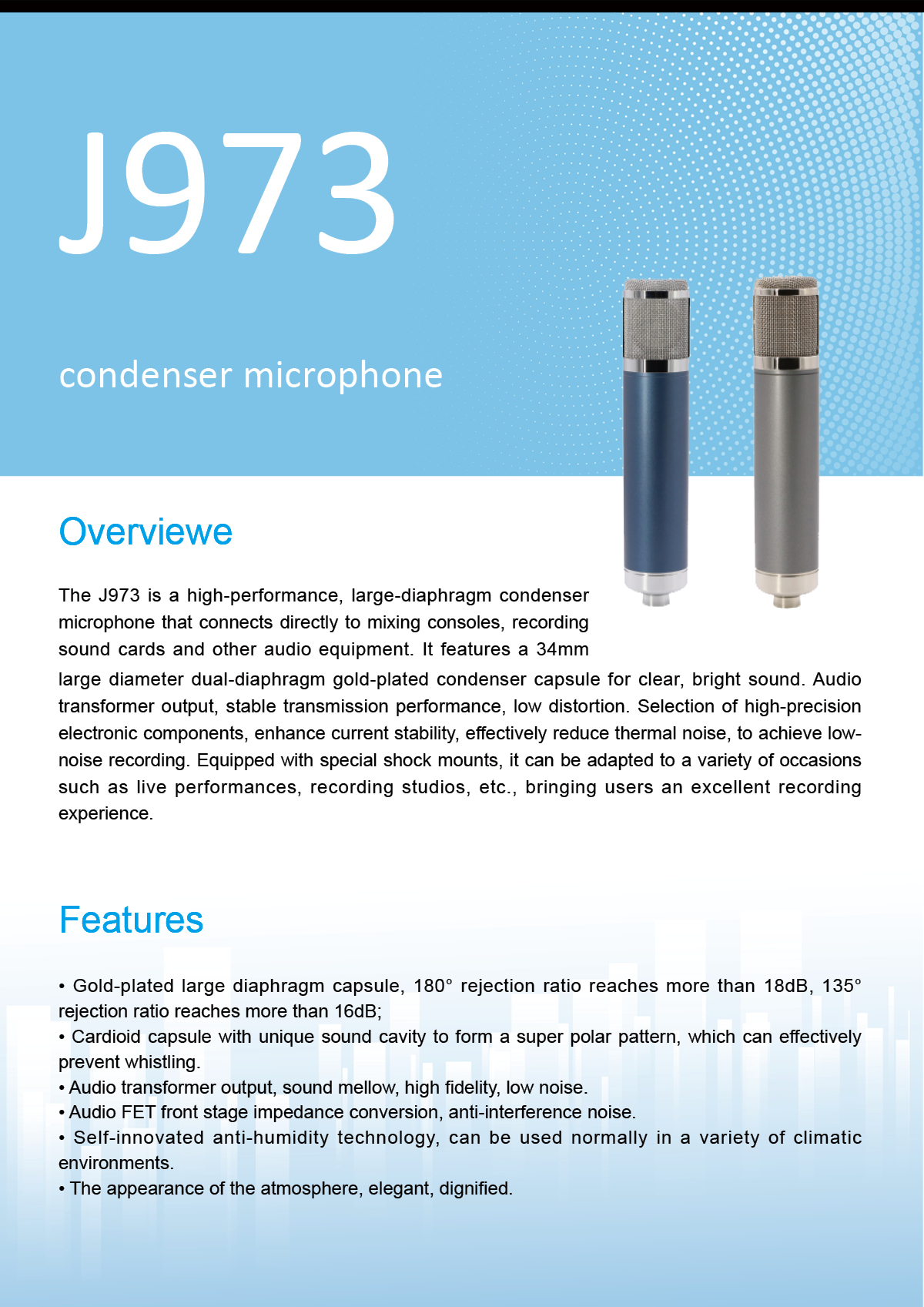

The J973 is a high-performance, large-diaphragm condenser microphone that connects directly to mixing consoles, recording sound cards and other audio equipment. It features a 34mm large diameter dual-diaphragm gold-plated condenser capsule for clear, bright sound. Audio transformer output, stable transmission performance, low distortion. Selection of high-precision electronic components, enhance current stability, effectively reduce thermal noise, to achieve low-noise recording. Equipped with special shock mounts, it can be adapted to a variety of occasions such as live performances, recording studios, etc., bringing users an excellent recording experience.

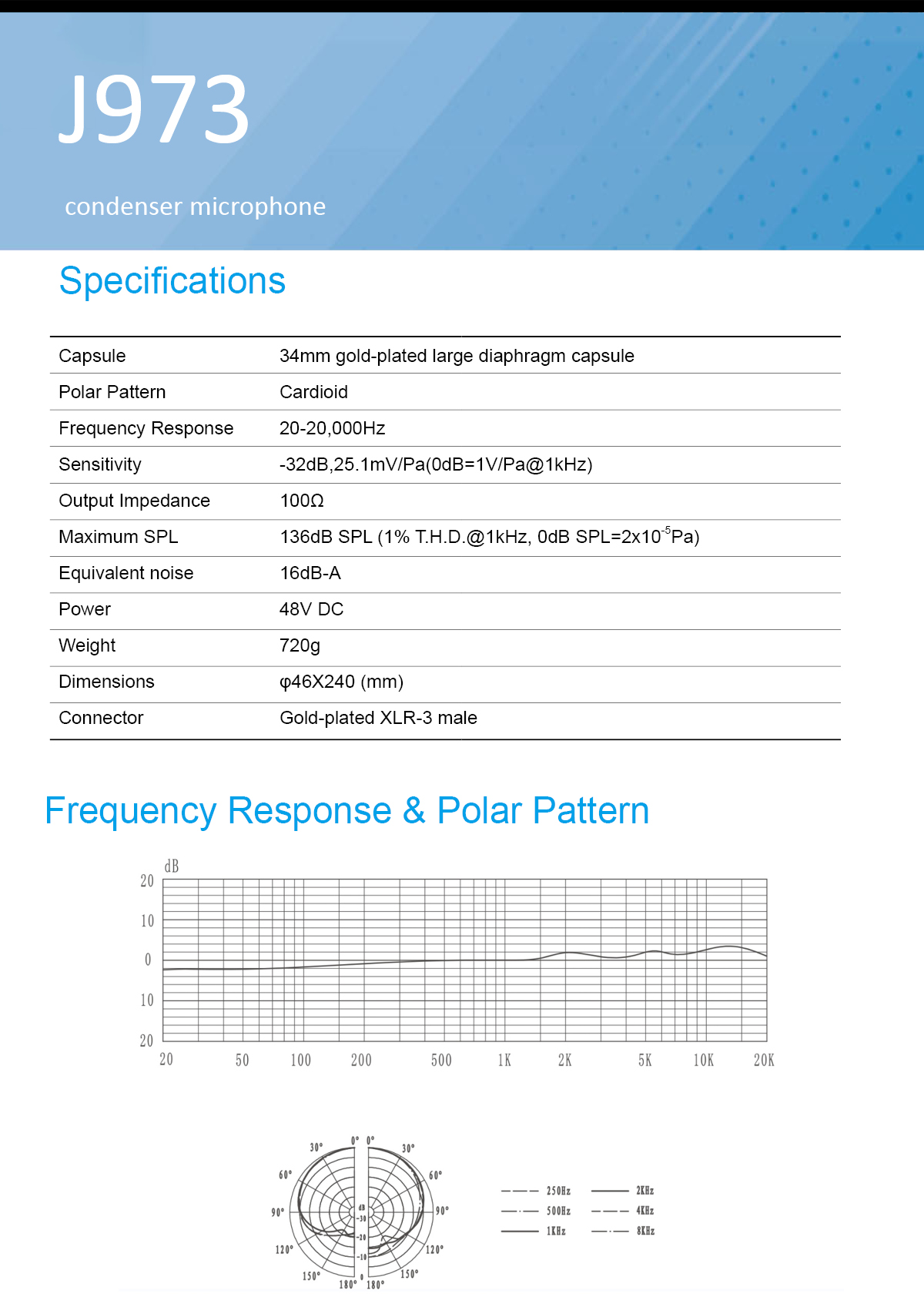

Capsule: 34mm gold-plated large diaphragm capsule
Polar Pattern: Cardioid
Frequency Response: 20-20,000Hz
Sensitivity: -32dB,25.1mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 100Ω
Maximum SPL: 136dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 16dB-A
Power: 48V DC
Weight: 720g
Dimensions: φ46X240 (mm)
Connector: Gold-plated XLR-3 male
