34mm gold-plated large diaphragm capsule
Cardioid
• Gold-plated large diaphragm capsule, 180° rejection ratio reaches more than 18dB, 135° rejection ratio reaches more than 16dB;
• Cardioid capsule with unique sound cavity to form a super polar pattern, which can effectively prevent whistling.
• Transistor output design for stable performance and low noise.
• Audio FET front stage impedance conversion, anti-interference noise.
• Self-innovated anti-humidity technology, can be used normally in a variety of climatic environments.
• The appearance of the atmosphere, elegant, dignified.

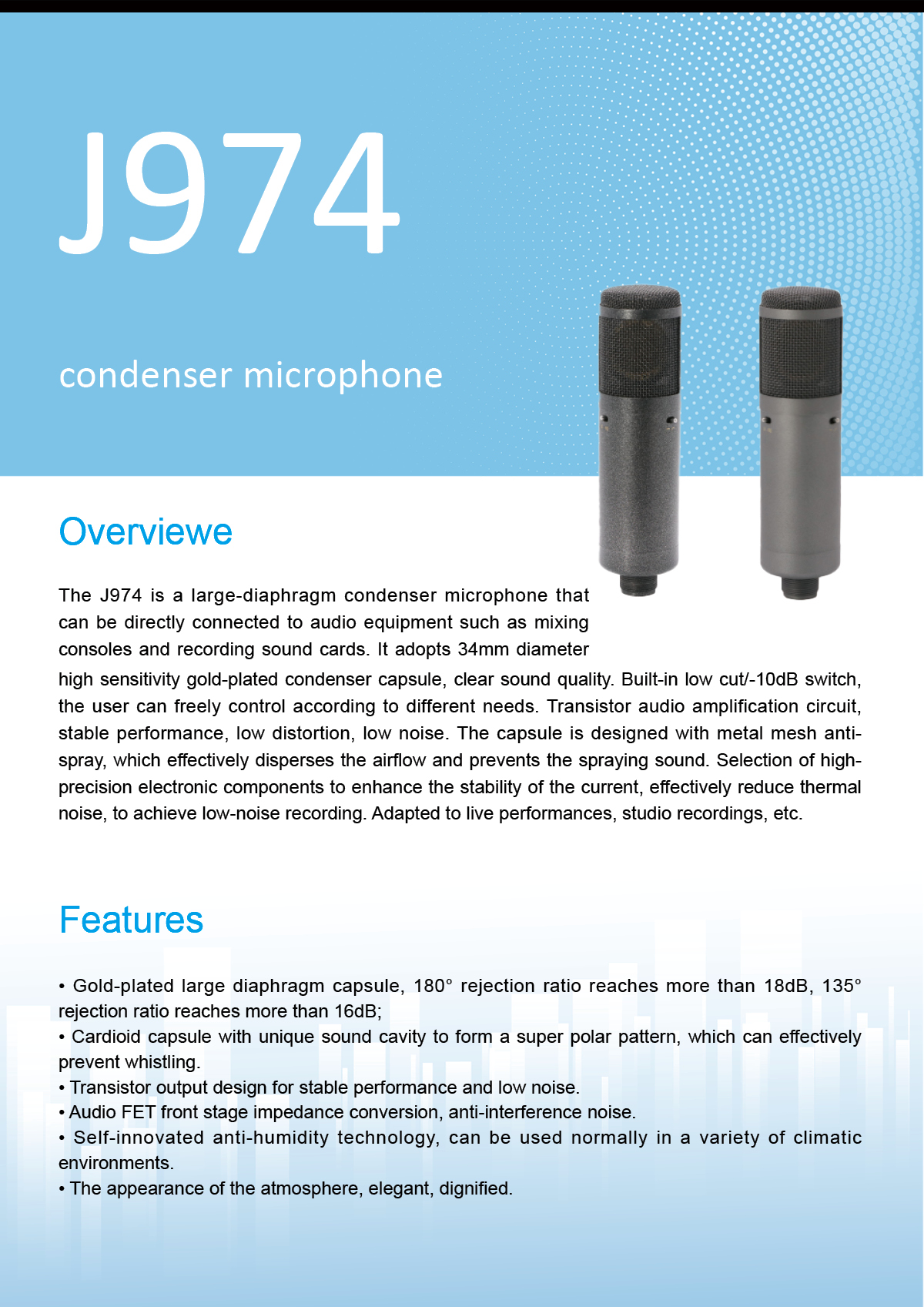

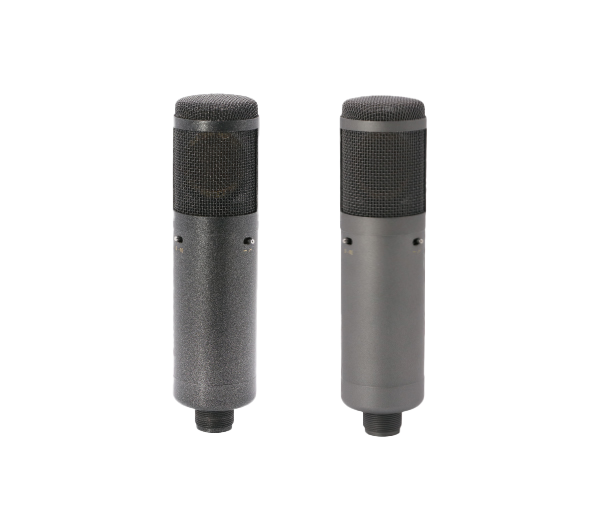

The J974 is a large-diaphragm condenser microphone that can be directly connected to audio equipment such as mixing consoles and recording sound cards. It adopts 34mm diameter high sensitivity gold-plated condenser capsule, clear sound quality. Built-in low cut/-10dB switch, the user can freely control according to different needs. Transistor audio amplification circuit, stable performance, low distortion, low noise. The capsule is designed with metal mesh anti-spray, which effectively disperses the airflow and prevents the spraying sound. Selection of high-precision electronic components to enhance the stability of the current, effectively reduce thermal noise, to achieve low-noise recording. Adapted to live performances, studio recordings, etc.

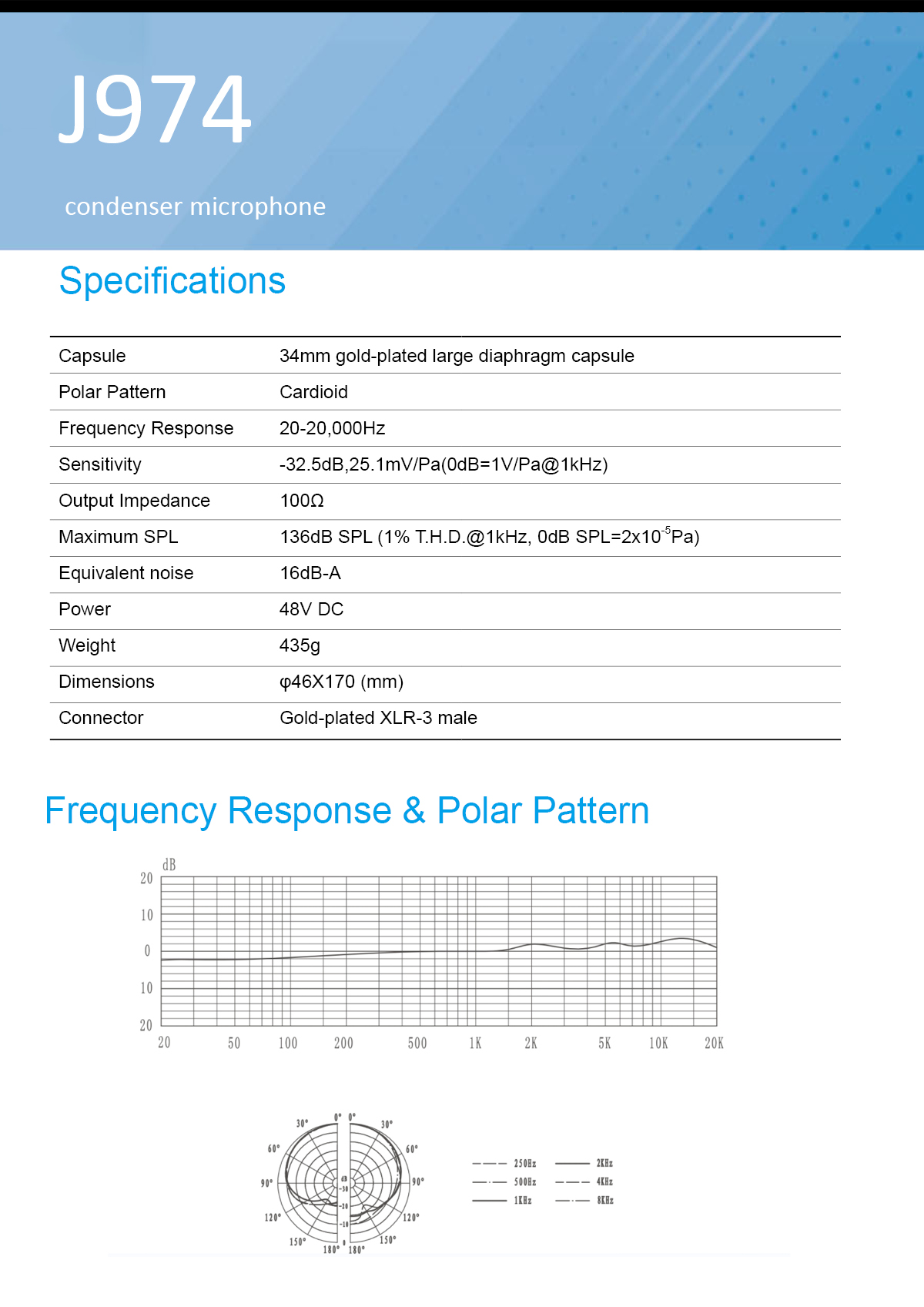

Capsule: 34mm gold-plated large diaphragm capsule
Polar Pattern: Cardioid
Frequency Response: 20-20,000Hz
Sensitivity: -32.5dB,25.1mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 100Ω
Maximum SPL: 136dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 16dB-A
Power: 48V DC
Weight: 435g
Dimensions: φ46X170 (mm)
Connector: Gold-plated XLR-3 male
