34mm gold-plated large diaphragm capsule
Cardioid
Bidirectional
Omni
• Gold-plated large diaphragm capsule;
• Cardioid: 180° rejection ratio reaches more than 17dB, 135° rejection ratio reaches more than 15dB;
• Bidirectional: 180° difference less than 0.6dB, 90° rejection ratio reaches 17dB or more;
• Omni: the difference in all directions is less than 1.0dB.
• Audio transformer output, sound mellow, high fidelity, low noise.
• Audio FET front stage impedance conversion, anti-interference noise.
• Self-innovated anti-humidity technology, can be used normally in a variety of climatic environments.
• The use of electroplating environmental protection pearl nickel, the appearance of the atmosphere, elegant, dignified.
The J971 is a high-performance, large-diaphragm condenser microphone that connects directly to mixing consoles, recording sound cards and other audio equipment. It features a 34mm large diameter dual-diaphragm gold-plated condenser capsule for clear, bright sound. A built-in -10dB gain attenuation switch allows you to precisely adjust the recording volume as needed. The polar pattern switch provides cardioid, bidirectional, omni for flexible control of the pickup range. Audio transformer output, stable transmission performance, low distortion. Selection of high-precision electronic components, enhance current stability, effectively reduce thermal noise, to achieve low-noise recording. Equipped with special shock mounts, it can be adapted to a variety of occasions such as live performances, recording studios, etc., bringing users an excellent recording experience.

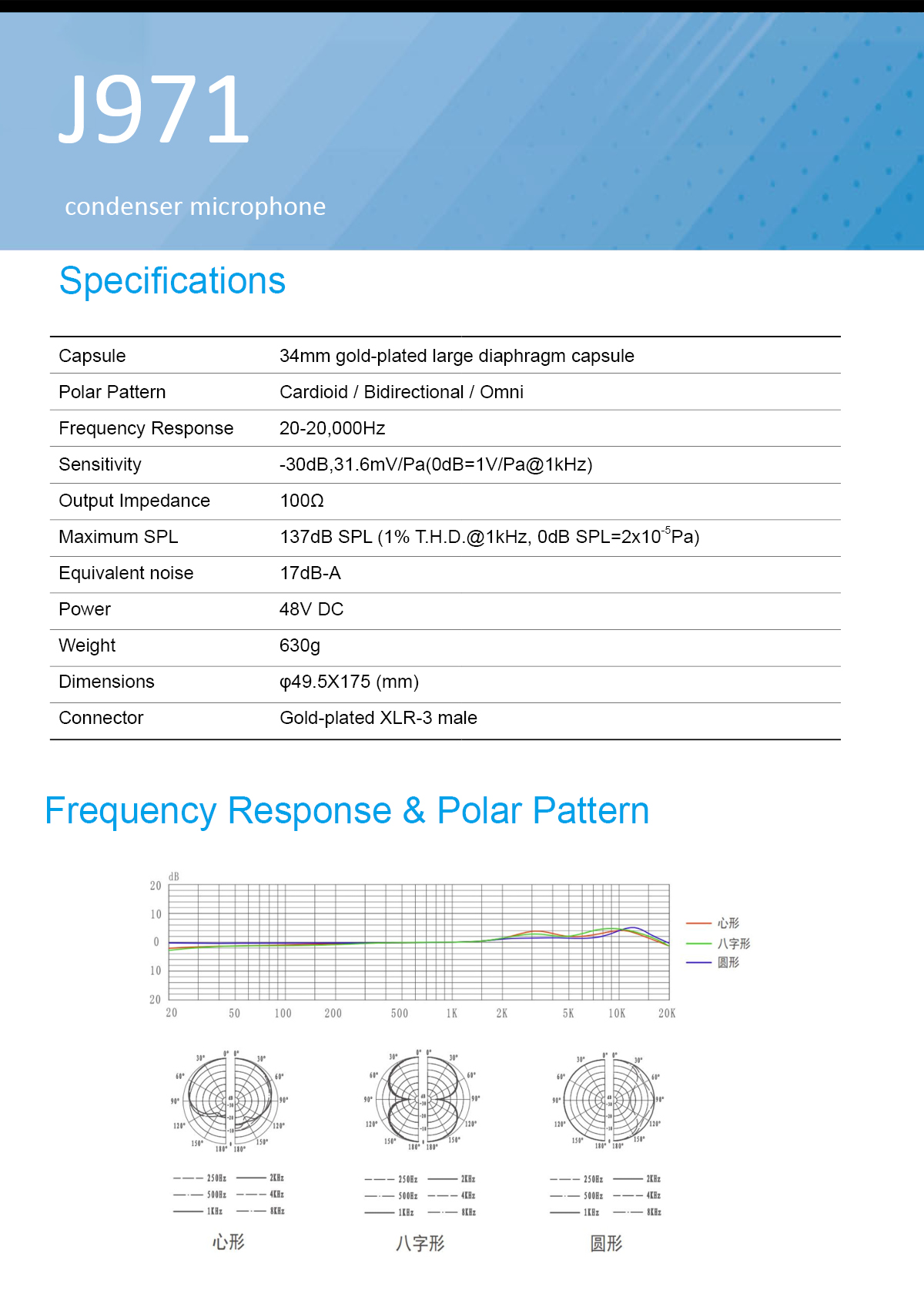

Capsule: 34mm gold-plated large diaphragm capsule
Polar Pattern: Cardioid / Bidirectional / Omni
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 100Ω
Maximum SPL: 137dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 17dB-A
Power: 48V DC
Weight: 630g
Dimensions: φ49.5X175 (mm)
Connector: Gold-plated XLR-3 male
