Type-c
18.2mm gold-plated capsule
Cardioid
• Gold-plated capsule, 180 ° rejection ratio of more than 20dB, 135 ° rejection ratio of more than 17dB.
• Cardioid capsule with unique sound cavity to form a super polar pattern, which can effectively prevent whistling.
• Support multi-sampling rate/bit depth.
• High-precision digital circuitry, low thermal noise, stable performance.
• High compatibility, zero delay, clear voice.
• The pen-shaped body design is easy to carry.
• Shielded from RF interference.

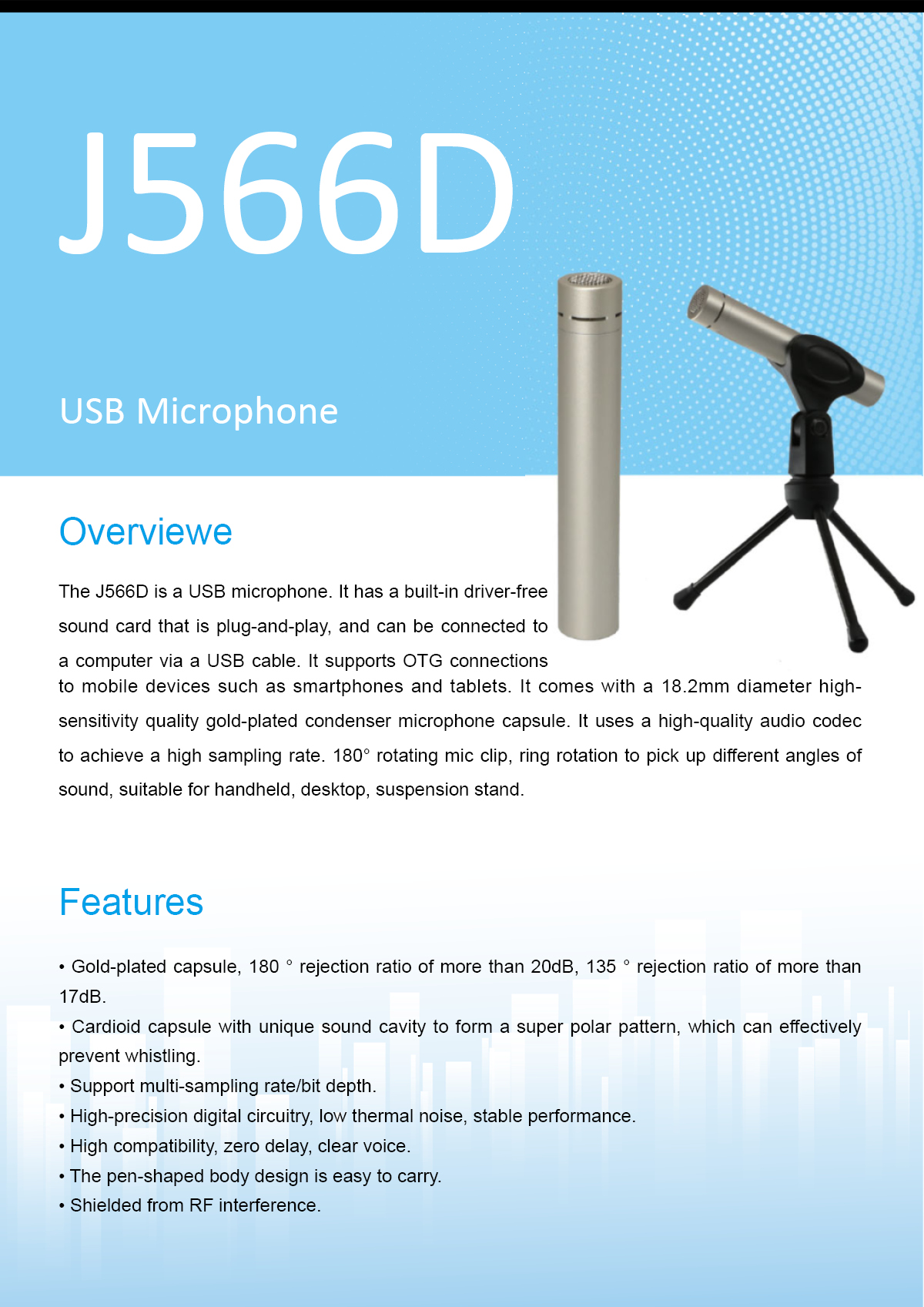

The J566D is a USB microphone. It has a built-in driver-free sound card that is plug-and-play, and can be connected to a computer via a USB cable. It supports OTG connections to mobile devices such as smartphones and tablets. It comes with a 18.2mm diameter high-sensitivity quality gold-plated condenser microphone capsule. It uses a high-quality audio codec to achieve a high sampling rate. 180° rotating mic clip, ring rotation to pick up different angles of sound, suitable for handheld, desktop, suspension stand.

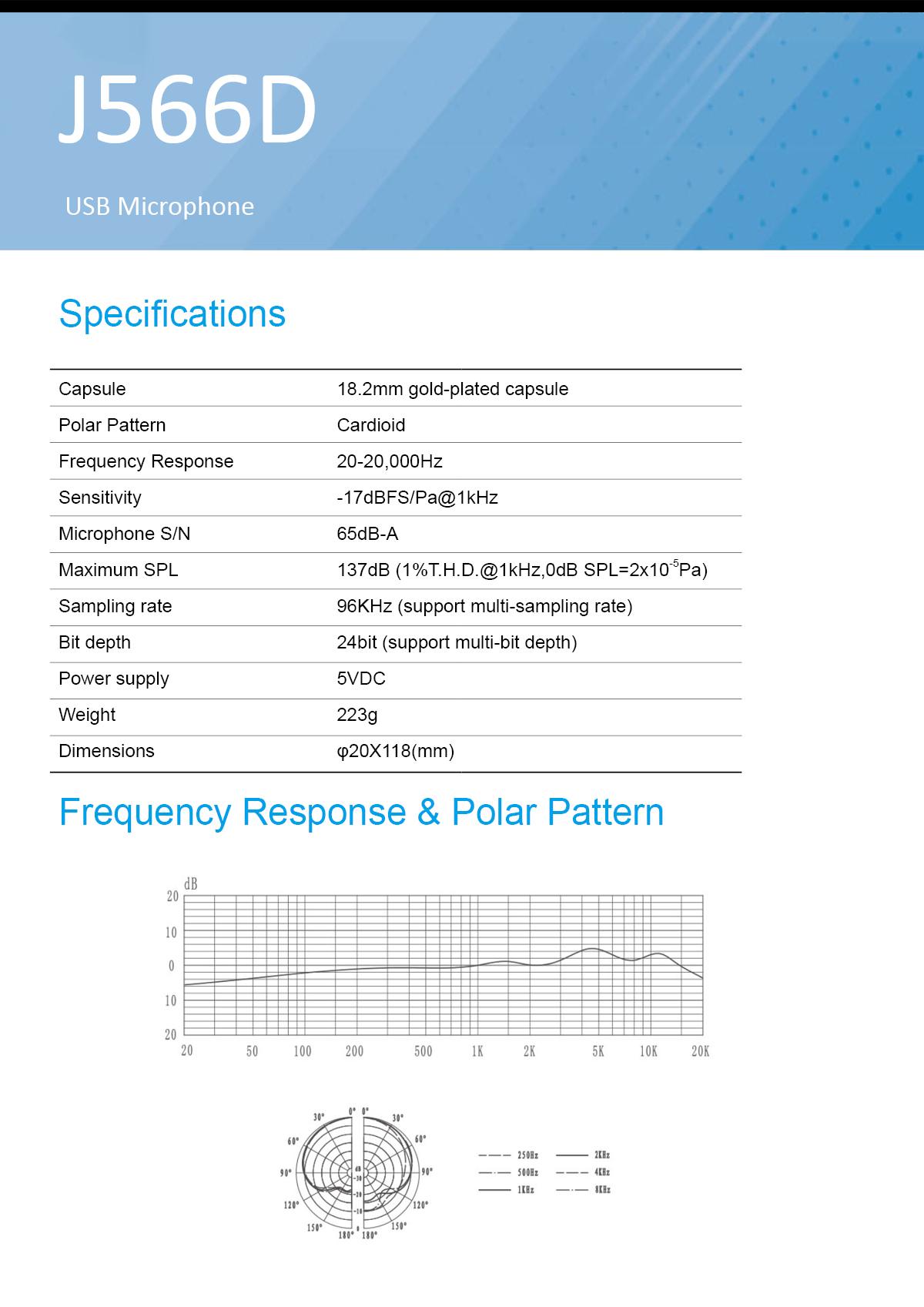

Capsule: 18.2mm gold-plated capsule
Polar Pattern: Cardioid
Frequency Response: 20-20,000Hz
Sensitivity: -17dBFS/Pa@1kHz
Microphone S/N: 65dB-A
Maximum SPL: 137dB (1%T.H.D.@1kHz,0dB SPL=2x10⁻⁵Pa)
Sampling rate: 96KHz (support multi-sampling rate)
Bit depth: 24bit (support multi-bit depth)
Power supply: 5VDC
Weight: 223g
Dimensions: φ20X118(mm)
