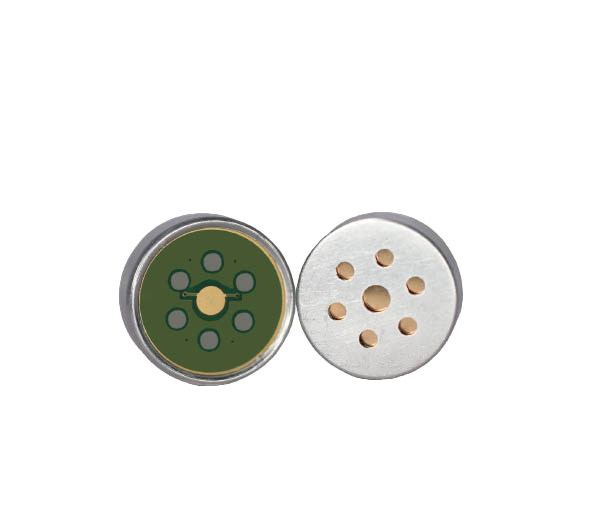

JS1865OEG/OEN Electret Condenser Capsule

JS1865 is a series of electret condenser capsule, which is used in microphones, pickups, walkie-talkies and other kinds of sound control equipment according to different polar patterns.

The JS1865O is omni polar pattern for 360° pickup.

The capsule is characterized by small size, shielding from RF interference, humidity resistance, stable performance, etc. It is widely used.

Model: JS1865OEG (gold-plated)/ JS1865OEG (nickel-plated)

Polar pattern: Omni

Frequency Response: 20-20,000Hz

Sensitivity:

-35±2dB,17.8mV/Pa (0dB=1V/Pa@1kHz, Ri=2.2KΩ, V=2.7V DC)

-40±2dB,10mV/Pa (0dB=1V/Pa@1kHz, Ri=2.2KΩ, Vs=2.7V DC)

Maximum SPL:

125dB (1% T.H.D.@1kHz,0dB SPL=2x10⁻⁵Pa)

127dB (1% T.H.D.@1kHz,0dB SPL=2x10⁻⁵Pa)

Equivalent noise:

17dB-A

18dB-A

Output Impedance: <1kΩ

Power supply: 1.5-5V DC

Weight: 2.7g
