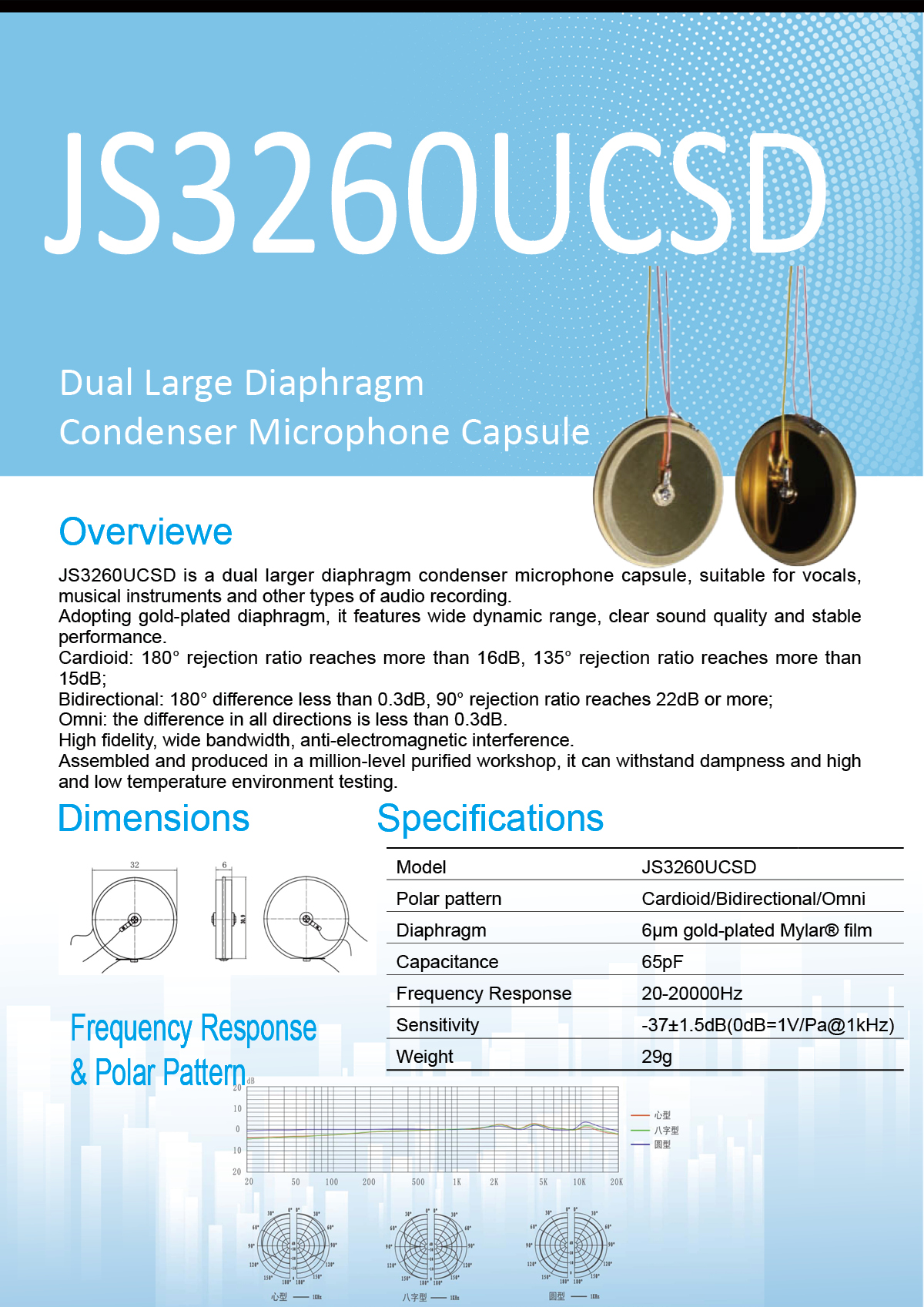

JS3260UCSD Dual Large Diaphragm Condenser Microphone Capsule

Cardioid

Bidirectional

Omni

· JS3260UCSD is a dual larger diaphragm condenser microphone capsule, suitable for vocals, musical instruments and other types of audio recording.

· Adopting gold-plated diaphragm, it features wide dynamic range, clear sound quality and stable performance.

· Cardioid: 180° rejection ratio reaches more than 16dB, 135° rejection ratio reaches more than 15dB;

· Bidirectional: 180° difference less than 0.3dB, 90° rejection ratio reaches 22dB or more;

· Omni: the difference in all directions is less than 0.3dB.

· High fidelity, wide bandwidth, anti-electromagnetic interference.

· Assembled and produced in a million-level purified workshop, it can withstand dampness and high and low temperature environment testing.

JS3260UCSD is a dual larger diaphragm condenser microphone capsule, suitable for vocals, musical instruments and other types of audio recording.

Adopting gold-plated diaphragm, it features wide dynamic range, clear sound quality and stable performance.

Cardioid: 180° rejection ratio reaches more than 16dB, 135° rejection ratio reaches more than 15dB;

Bidirectional: 180° difference less than 0.3dB, 90° rejection ratio reaches 22dB or more;

Omni: the difference in all directions is less than 0.3dB.

High fidelity, wide bandwidth, anti-electromagnetic interference.

Assembled and produced in a million-level purified workshop, it can withstand dampness and high and low temperature environment testing.

Model: JS3260UCSD

Polar pattern: Cardioid/Bidirectional/Omni

Diaphragm: 6μm gold-plated Mylar® film

Capacitance: 65pF

Frequency Response: 20-20000Hz

Sensitivity: -37±1.5dB(0dB=1V/Pa@1kHz)

Weight: 29g
