16mm gold-plated capsule
Hypercardioid
• Gold-plated diaphragm capsule: 180° rejection ratio reaches more than 16dB, 135° rejection ratio reaches more than 19dB;
• The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling;
• The pickup distance is far, and the effective pickup distance can reach more than 1 meter.
• Digital and analog routes work independently and do not interfere with each other.
• Circuit design to suppress common mode interference, use of high-precision electrical components to reduce thermal noise.
• Double connecting rod design can realize microphone 0°-90° elevation angle pickup.
• Zinc alloy one-piece molding shell, effectively inhibit all kinds of electromagnetic interference.

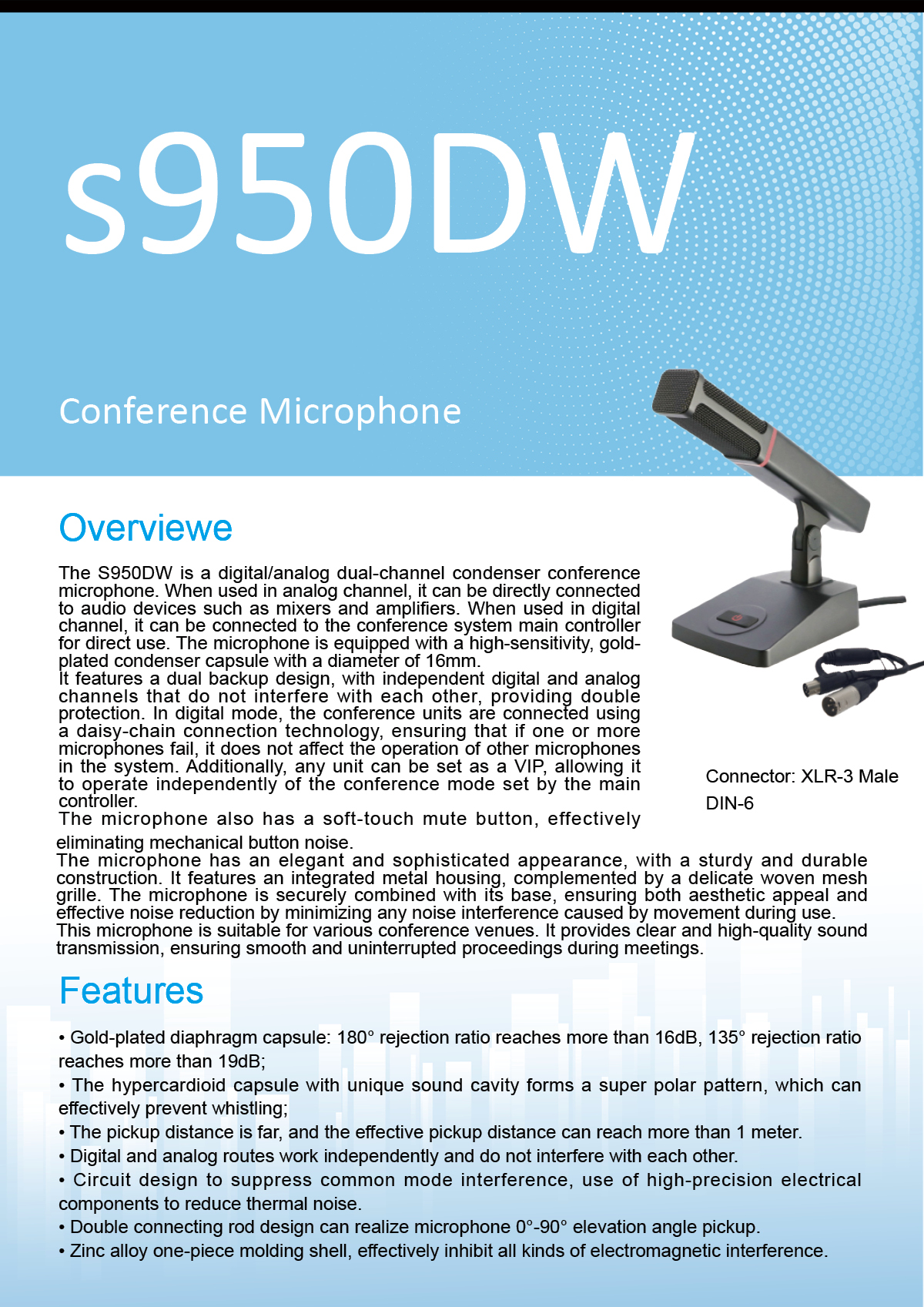

The S950DW is a digital/analog dual-channel condenser conference microphone. When used in analog channel, it can be directly connected to audio devices such as mixers and amplifiers. When used in digital channel, it can be connected to the conference system main controller for direct use. The microphone is equipped with a high-sensitivity, gold-plated condenser capsule with a diameter of 16mm.
It features a dual backup design, with independent digital and analog channels that do not interfere with each other, providing double protection. In digital mode, the conference units are connected using a daisy-chain connection technology, ensuring that if one or more microphones fail, it does not affect the operation of other microphones in the system. Additionally, any unit can be set as a VIP, allowing it to operate independently of the conference mode set by the main controller.
The microphone also has a soft-touch mute button, effectively eliminating mechanical button noise.
The microphone has an elegant and sophisticated appearance, with a sturdy and durable construction. It features an integrated metal housing, complemented by a delicate woven mesh grille. The microphone is securely combined with its base, ensuring both aesthetic appeal and effective noise reduction by minimizing any noise interference caused by movement during use.
This microphone is suitable for various conference venues. It provides clear and high-quality sound transmission, ensuring smooth and uninterrupted proceedings during meetings.

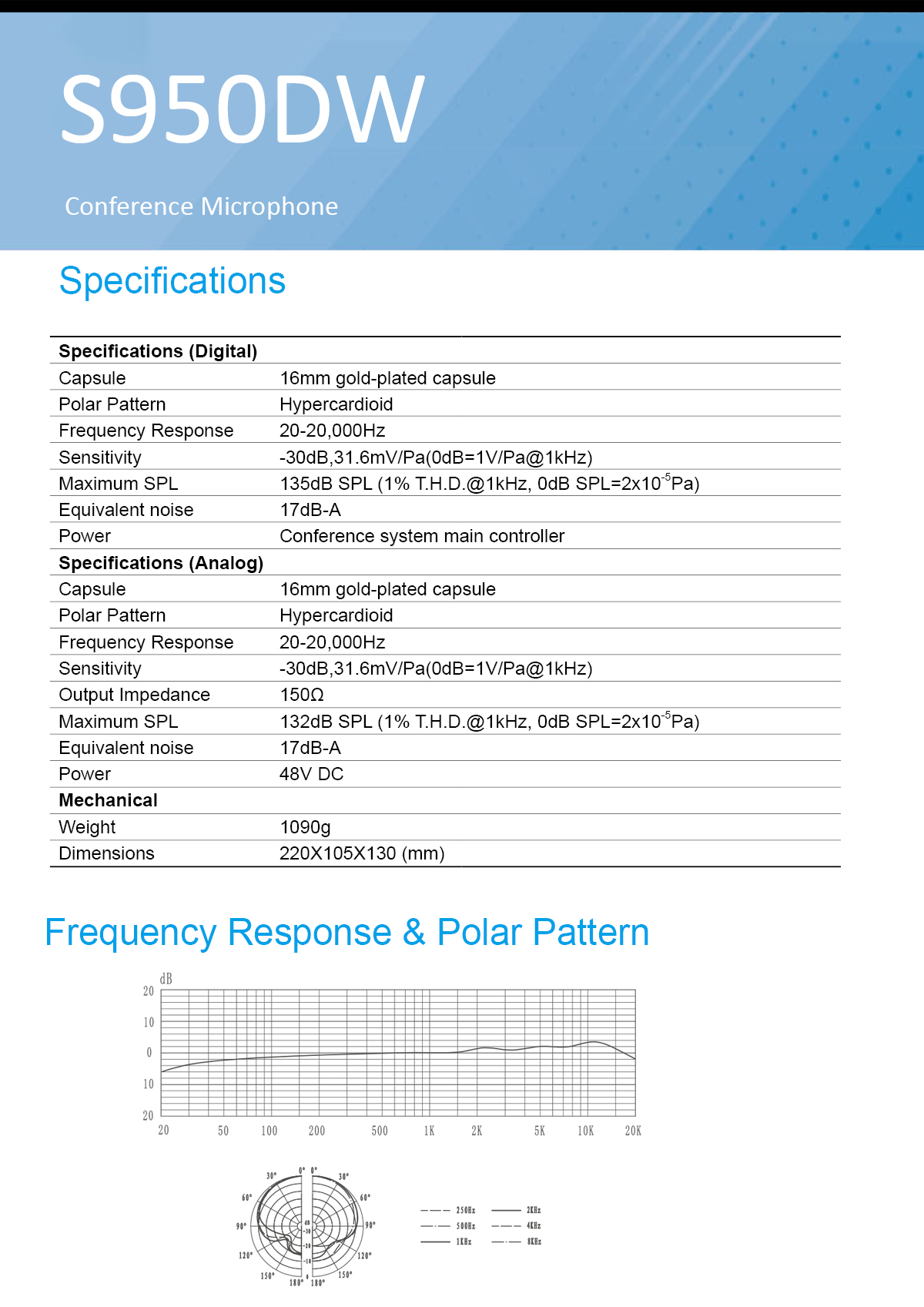

Specifications (Digital)
Capsule: 16mm gold-plated capsule
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Maximum SPL: 135dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 17dB-A
Power: Conference system main controller
Specifications (Analog)
Capsule: 16mm gold-plated capsule
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 150Ω
Maximum SPL: 132dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 17dB-A
Power: 48V DC
Mechanical
Weight: 1090g
Dimensions: 220X105X130 (mm)
