20.2mm gold-plated capsule
Hypercardioid
• Gold-plated diaphragm capsule: 180° rejection ratio reaches more than 17dB, 135° rejection ratio reaches more than 20dB;
• The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling;
• The pickup distance is far, and the effective pickup distance can reach more than 1 meter.
• Circuit design to suppress common mode interference, use of high-precision electrical components to reduce thermal noise.
• Double connecting rod design can realize microphone 0°-90° elevation angle pickup.
• Zinc alloy one-piece molding shell, effectively inhibit all kinds of electromagnetic interference.
• The digital and analog modes of operation work independently and do not interfere with each other.

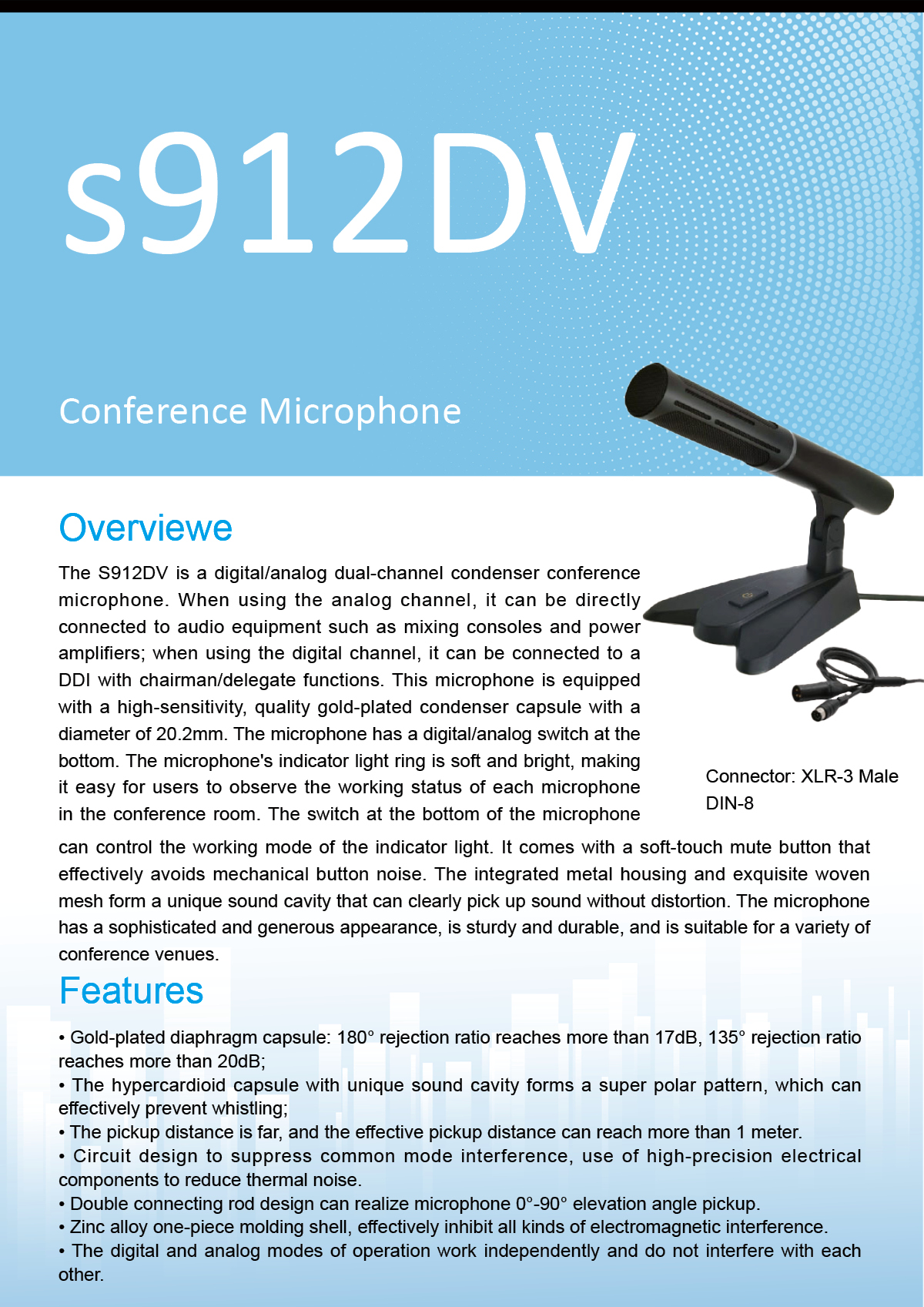

The S912DV is a digital/analog dual-channel condenser conference microphone. When using the analog channel, it can be directly connected to audio equipment such as mixing consoles and power amplifiers; when using the digital channel, it can be connected to a DDI with chairman/delegate functions. This microphone is equipped with a high-sensitivity, quality gold-plated condenser capsule with a diameter of 20.2mm. The microphone has a digital/analog switch at the bottom. The microphone's indicator light ring is soft and bright, making it easy for users to observe the working status of each microphone in the conference room. The switch at the bottom of the microphone can control the working mode of the indicator light. It comes with a soft-touch mute button that effectively avoids mechanical button noise. The integrated metal housing and exquisite woven mesh form a unique sound cavity that can clearly pick up sound without distortion. The microphone has a sophisticated and generous appearance, is sturdy and durable, and is suitable for a variety of conference venues.

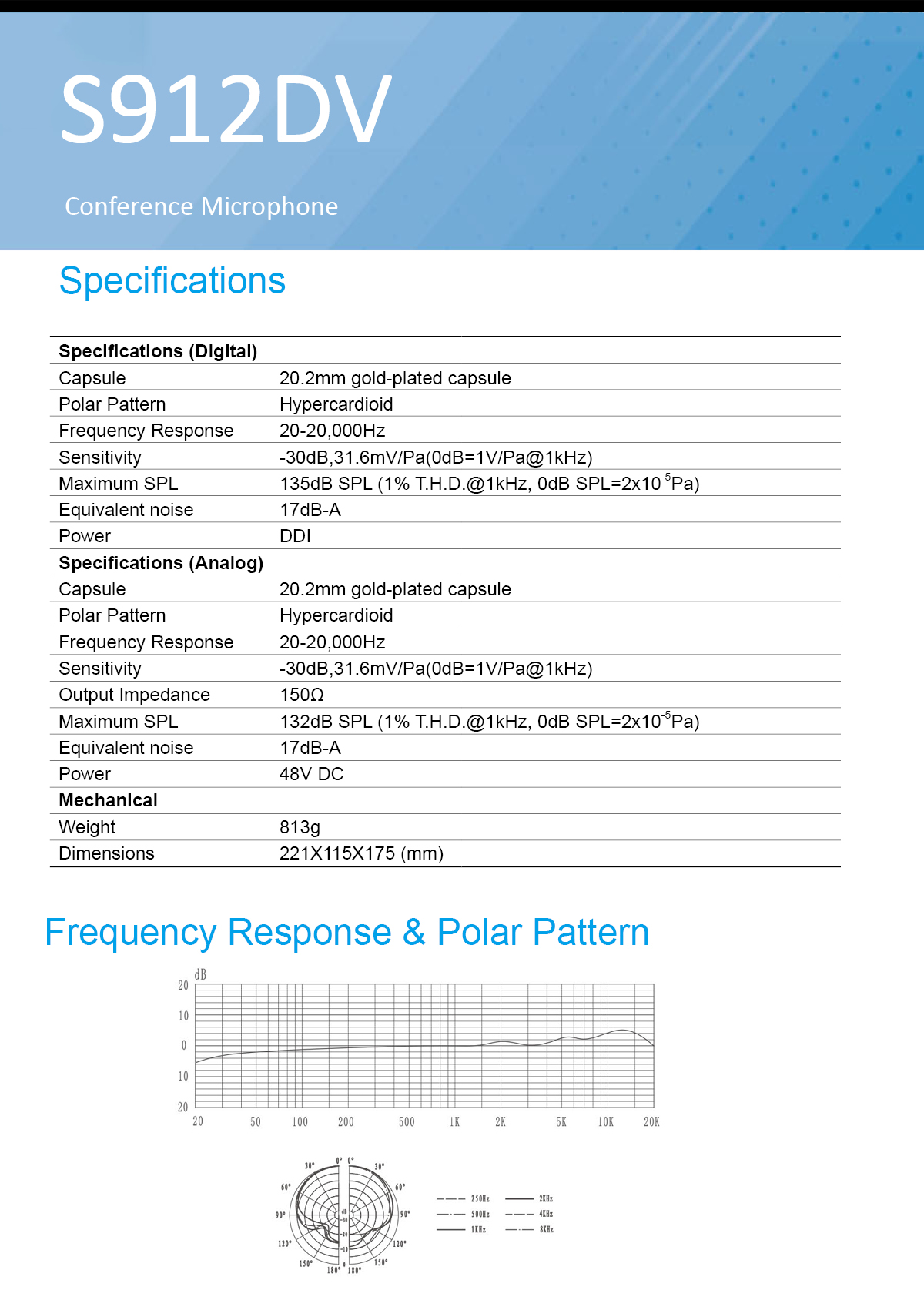

Specifications (Digital)
Capsule: 20.2mm gold-plated capsule
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Maximum SPL: 135dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 17dB-A
Power: DDI
Specifications (Analog)
Capsule: 20.2mm gold-plated capsule
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 150Ω
Maximum SPL: 132dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 17dB-A
Power: 48V DC
Mechanical
Weight: 813g
Dimensions: 221X115X175 (mm)
