P905DW Voice Pickup

P905DW is a voice pickup, access to security, hospitals, schools and other monitoring equipment. It is equipped with 9.7mm diameter high sensitivity high quality gold-plated capsule, which makes its sound quality clear and natural. It has a built-in efficient digital noise reduction chip, which can suppress environmental noise, achieving intelligent noise reduction. The bottom of the pickup is designed with a digital/analog conversion switch for analog/noise reduction dual signal output. Equipped with gain knob, support gain adjustment. Thin body design saves space, with device status indicator.

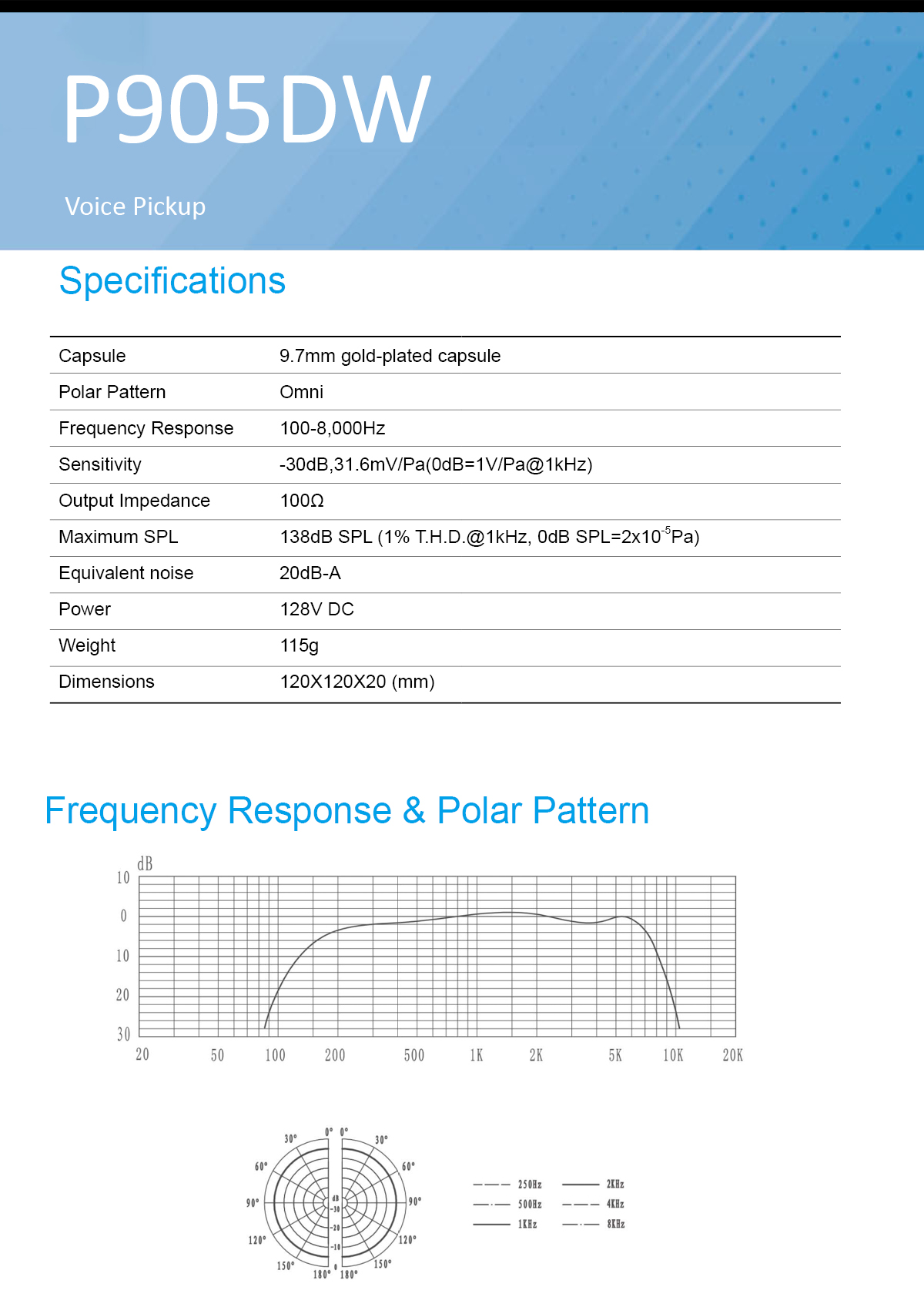

Capsule: 9.7mm gold-plated capsule

Polar Pattern: Omni

Frequency Response: 100-8,000Hz

Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)

Output Impedance: 100Ω

Maximum SPL: 138dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)

Equivalent noise: 20dB-A

Power: 128V DC

Weight: 115g

Dimensions: 120X120X20 (mm)
