Dual 16mm gold-plated capsules
Hypercardioid
• Gold-plated diaphragm capsule: 180° rejection ratio reaches more than 16dB, 135° rejection ratio reaches more than 19dB;
• The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling;
• The pickup distance is far, and the effective pickup distance can reach more than 1 meter.
• Circuit design to suppress common mode interference, use of high-precision electrical components to reduce thermal noise.
• Double connecting rod design can realize microphone 0°-90° elevation angle pickup.
• Zinc alloy one-piece molding shell, effectively inhibit all kinds of electromagnetic interference.

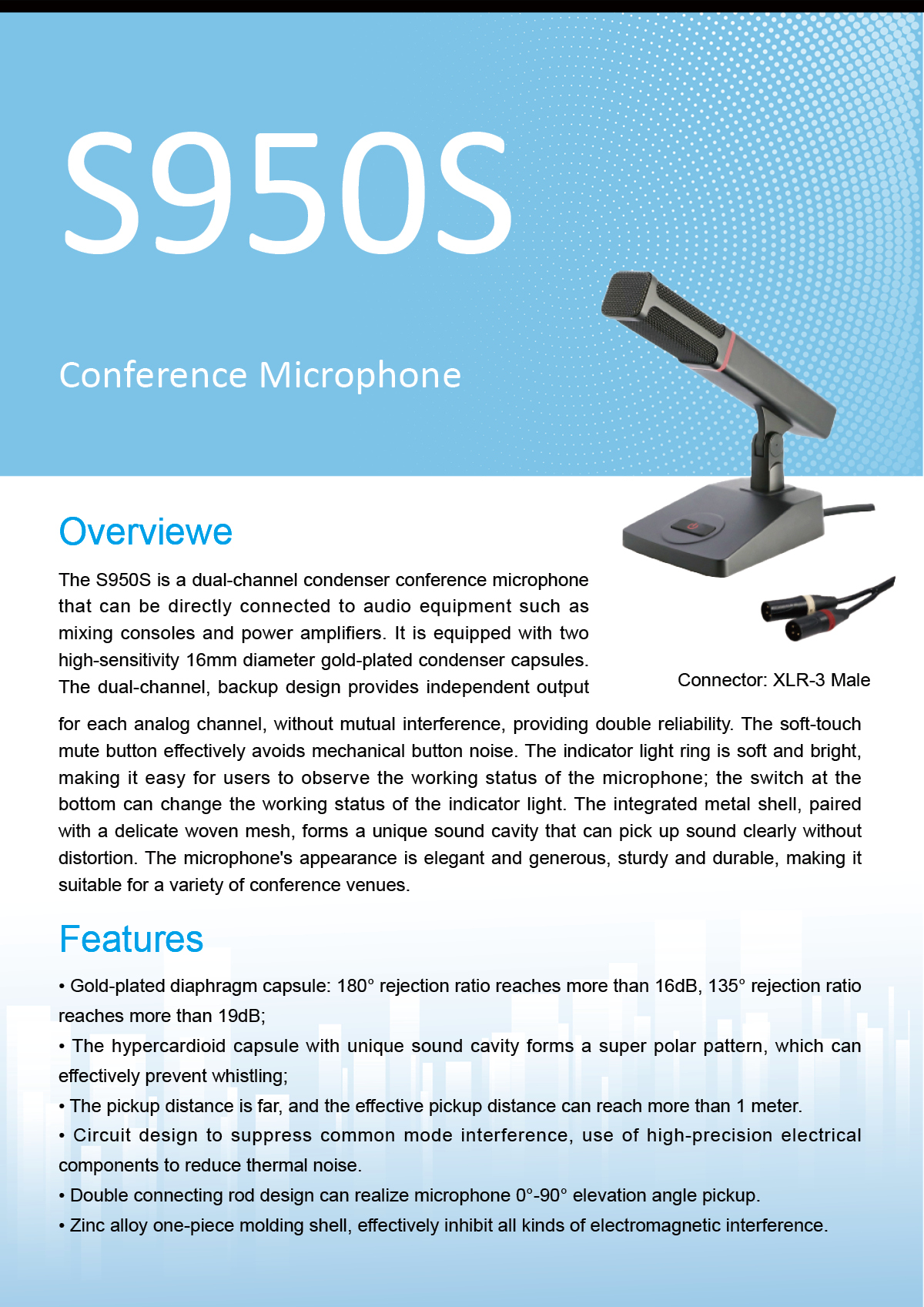

The S950S is a dual-channel condenser conference microphone that can be directly connected to audio equipment such as mixing consoles and power amplifiers. It is equipped with two high-sensitivity 16mm diameter gold-plated condenser capsules. The dual-channel, backup design provides independent output for each analog channel, without mutual interference, providing double reliability. The soft-touch mute button effectively avoids mechanical button noise. The indicator light ring is soft and bright, making it easy for users to observe the working status of the microphone; the switch at the bottom can change the working status of the indicator light. The integrated metal shell, paired with a delicate woven mesh, forms a unique sound cavity that can pick up sound clearly without distortion. The microphone's appearance is elegant and generous, sturdy and durable, making it suitable for a variety of conference venues.
Capsule: Dual 16mm gold-plated capsules
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 150Ω
Maximum SPL: 131dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 17.5dB-A
Power: 48V
Weight: 1090g
Dimensions: 220X105X130 (mm)
Connector: Gold-plated XLR-3 male*2
