20.2mm gold-plated capsule
Hypercardioid
· Gold-plated diaphragm capsule: 180° rejection ratio reaches more than 16dB, 135° rejection ratio reaches more than 18dB;
· The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling;
· The pickup distance is far, and the effective pickup distance can reach more than 1 meter.
· Circuit design to suppress common mode interference, use of high-precision electrical components to reduce thermal noise.
· Double connecting rod design can realize microphone 0°-90° elevation angle pickup.
· Zinc alloy one-piece molding shell, effectively inhibit all kinds of electromagnetic interference.

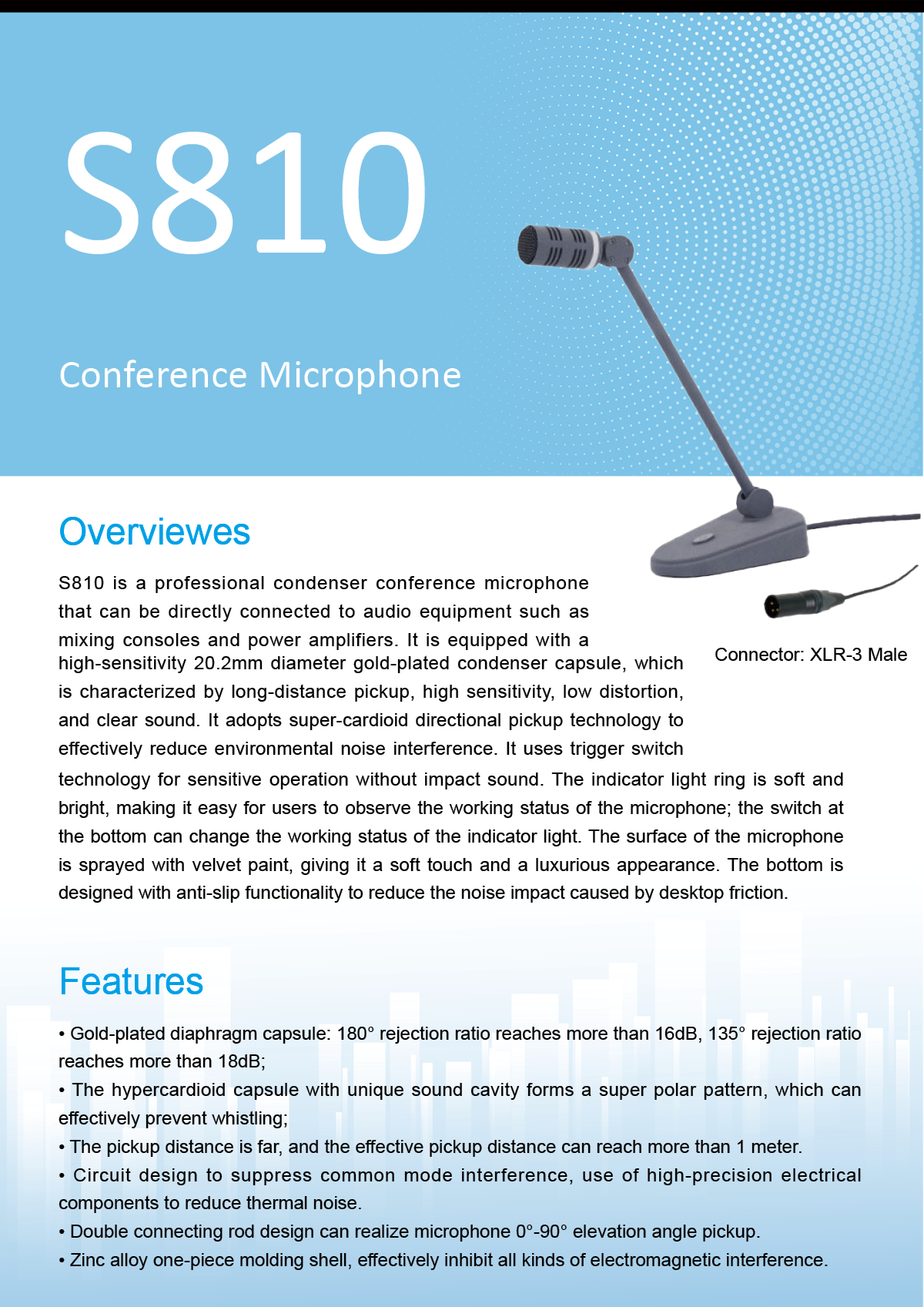

S810 is a professional condenser conference microphone that can be directly connected to audio equipment such as mixing consoles and power amplifiers. It is equipped with a high-sensitivity 20.2mm diameter gold-plated condenser capsule, which is characterized by long-distance pickup, high sensitivity, low distortion, and clear sound. It adopts super-cardioid directional pickup technology to effectively reduce environmental noise interference. It uses trigger switch technology for sensitive operation without impact sound. The indicator light ring is soft and bright, making it easy for users to observe the working status of the microphone; the switch at the bottom can change the working status of the indicator light. The surface of the microphone is sprayed with velvet paint, giving it a soft touch and a luxurious appearance. The bottom is designed with anti-slip functionality to reduce the noise impact caused by desktop friction.

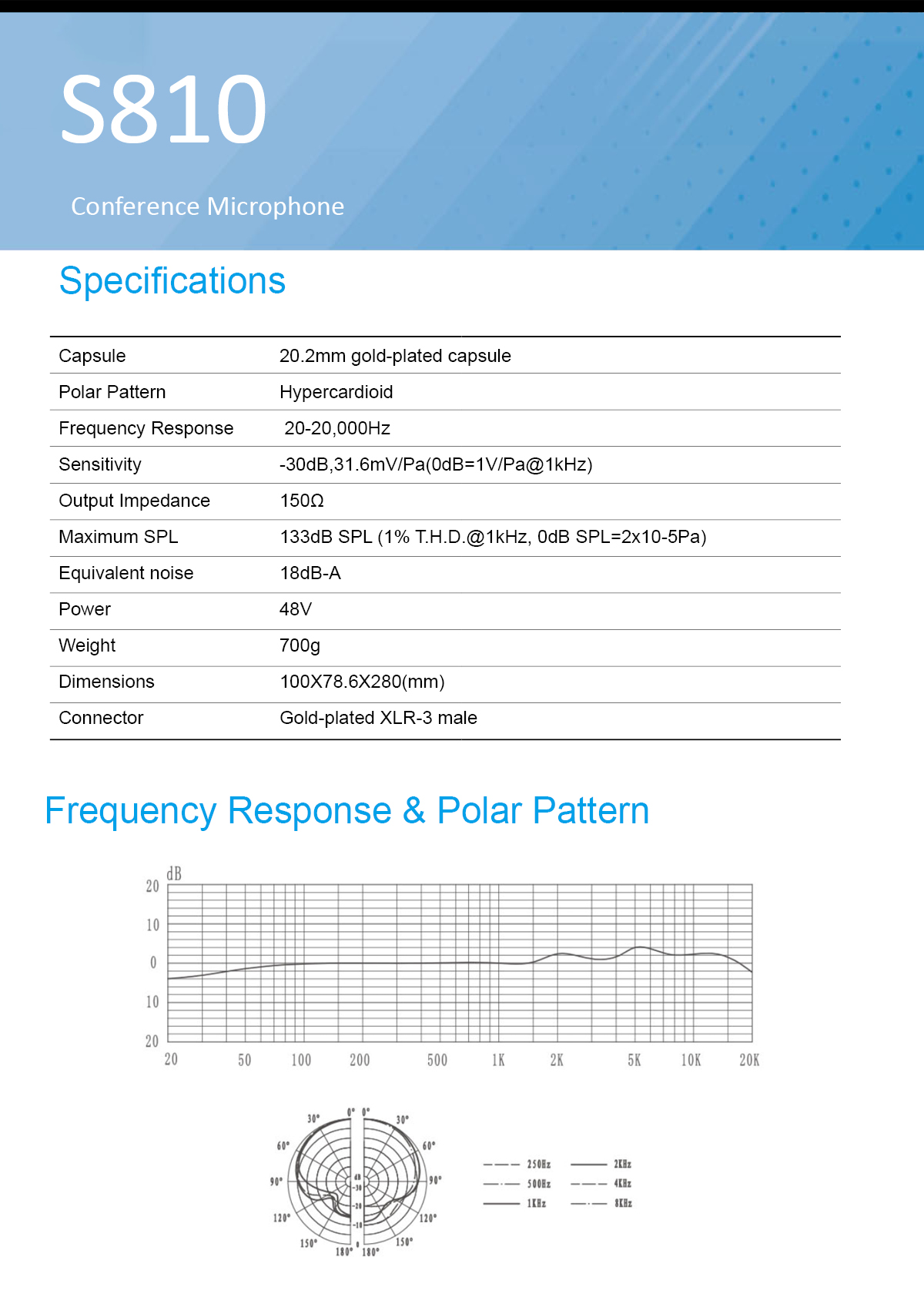

Capsule: 20.2mm gold-plated capsule
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 150Ω
Maximum SPL: 133dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 18dB-A
Power: 48V
Weight: 700g
Dimensions: 100X78.6X280(mm)
Connector: Gold-plated XLR-3 male
