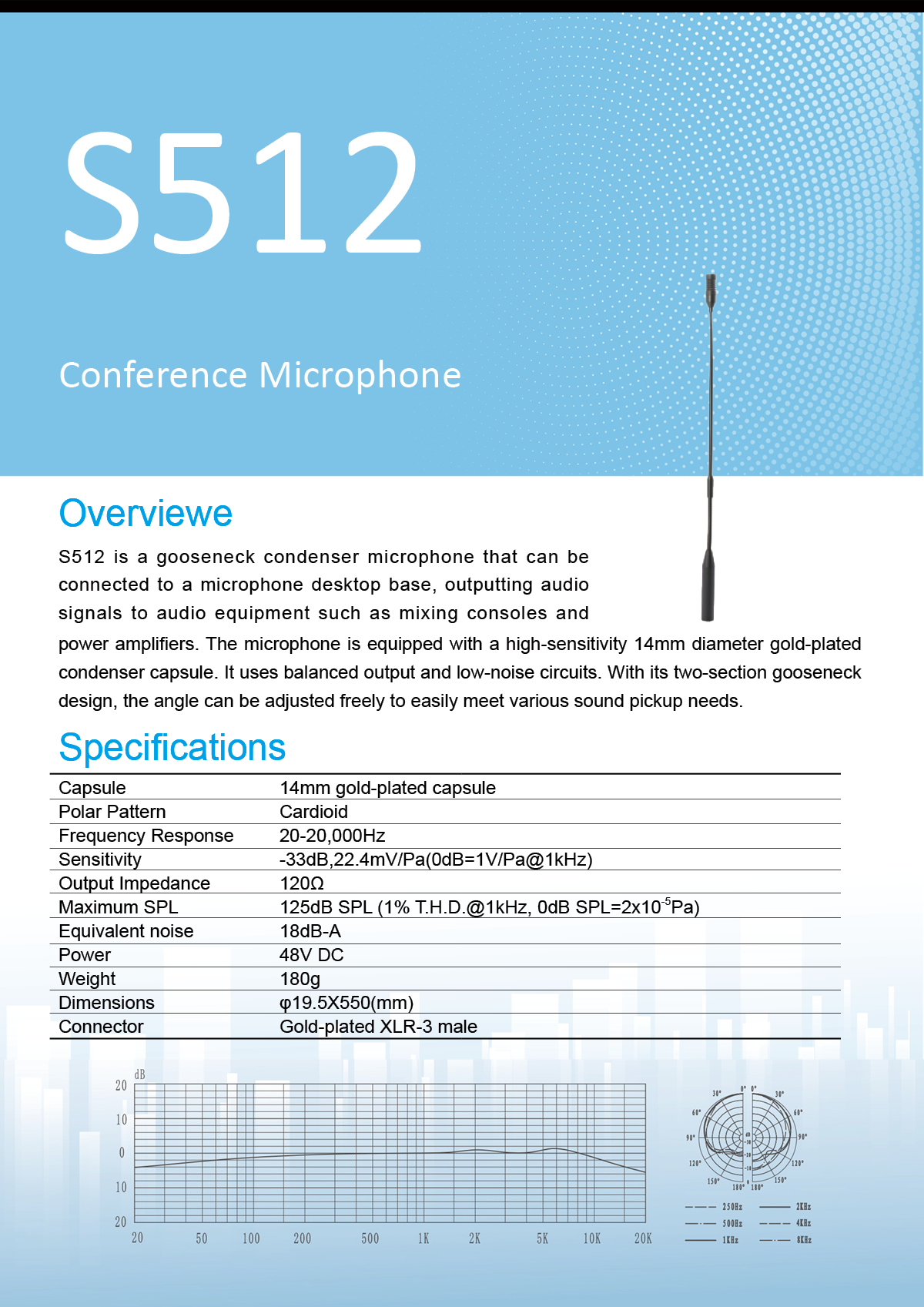

S512 Condenser Microphone

S512 is a gooseneck condenser microphone that can be connected to a microphone desktop base, outputting audio signals to audio equipment such as mixing consoles and power amplifiers. The microphone is equipped with a high-sensitivity 14mm diameter gold-plated condenser capsule. It uses balanced output and low-noise circuits. With its two-section gooseneck design, the angle can be adjusted freely to easily meet various sound pickup needs.

Capsule: 14mm gold-plated capsule

Polar Pattern: Cardioid

Frequency Response: 20-20,000Hz

Sensitivity: -33dB,22.4mV/Pa(0dB=1V/Pa@1kHz)

Output Impedance: 120Ω

Maximum SPL: 125dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)

Equivalent noise: 18dB-A

Power: 48V DC

Weight: 180g

Dimensions: φ19.5X550(mm)

Connector: Gold-plated XLR-3 male
