9.7mm gold-plated capsule
Hypercardioid
• Gold-plated diaphragm capsule: 180° rejection ratio reaches more than 15dB, 135° rejection ratio reaches more than 17dB;
• The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling;
• Circuit design to suppress common mode interference, use of high-precision electrical components to reduce thermal noise.
• The gooseneck angle can be adjusted freely.
• The pickup distance is far, and the effective pickup distance can reach more than 1 meter.

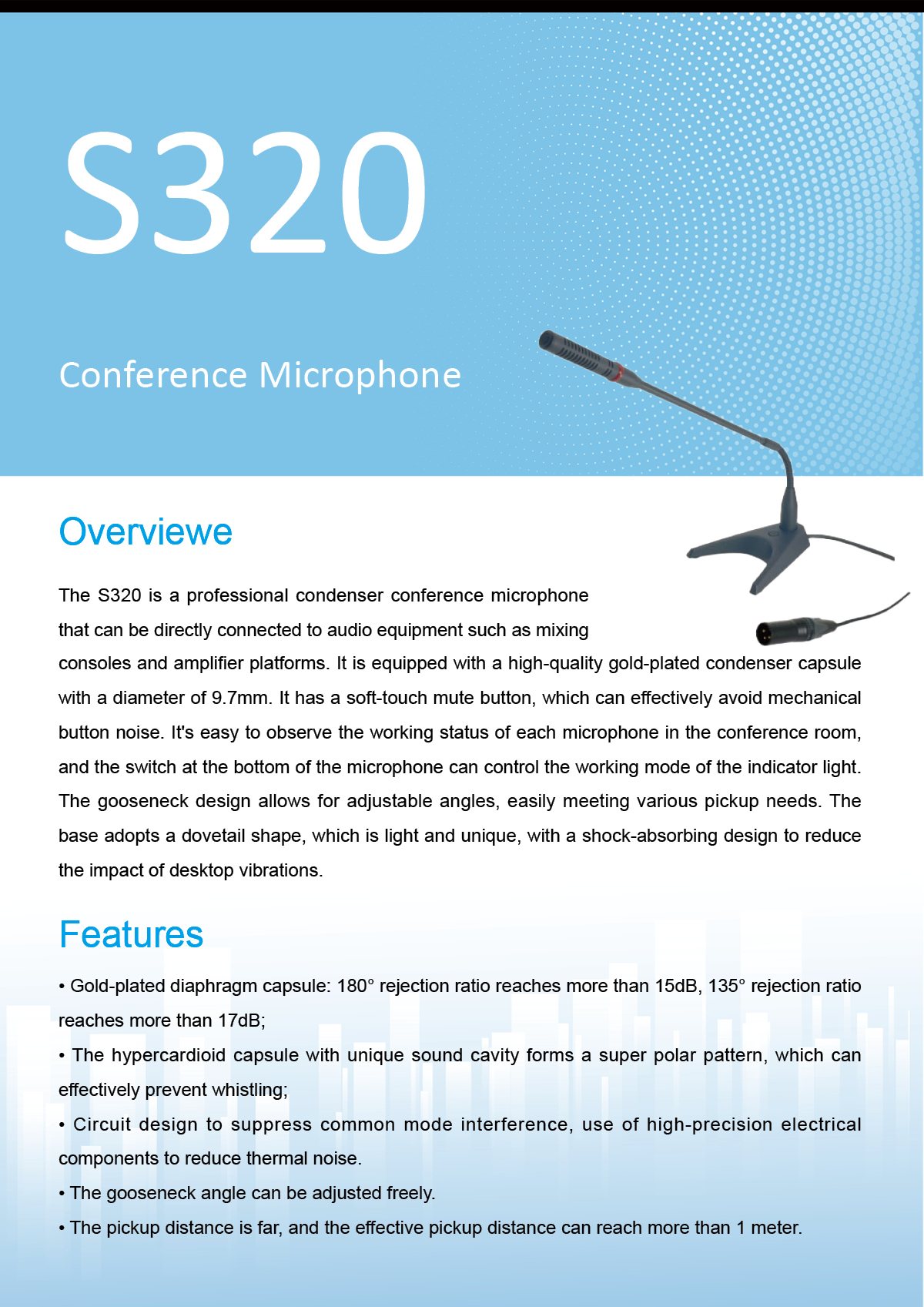

The S320 is a professional condenser conference microphone that can be directly connected to audio equipment such as mixing consoles and amplifier platforms. It is equipped with a high-quality gold-plated condenser capsule with a diameter of 9.7mm. It has a soft-touch mute button, which can effectively avoid mechanical button noise. It's easy to observe the working status of each microphone in the conference room, and the switch at the bottom of the microphone can control the working mode of the indicator light. The gooseneck design allows for adjustable angles, easily meeting various pickup needs. The base adopts a dovetail shape, which is light and unique, with a shock-absorbing design to reduce the impact of desktop vibrations.

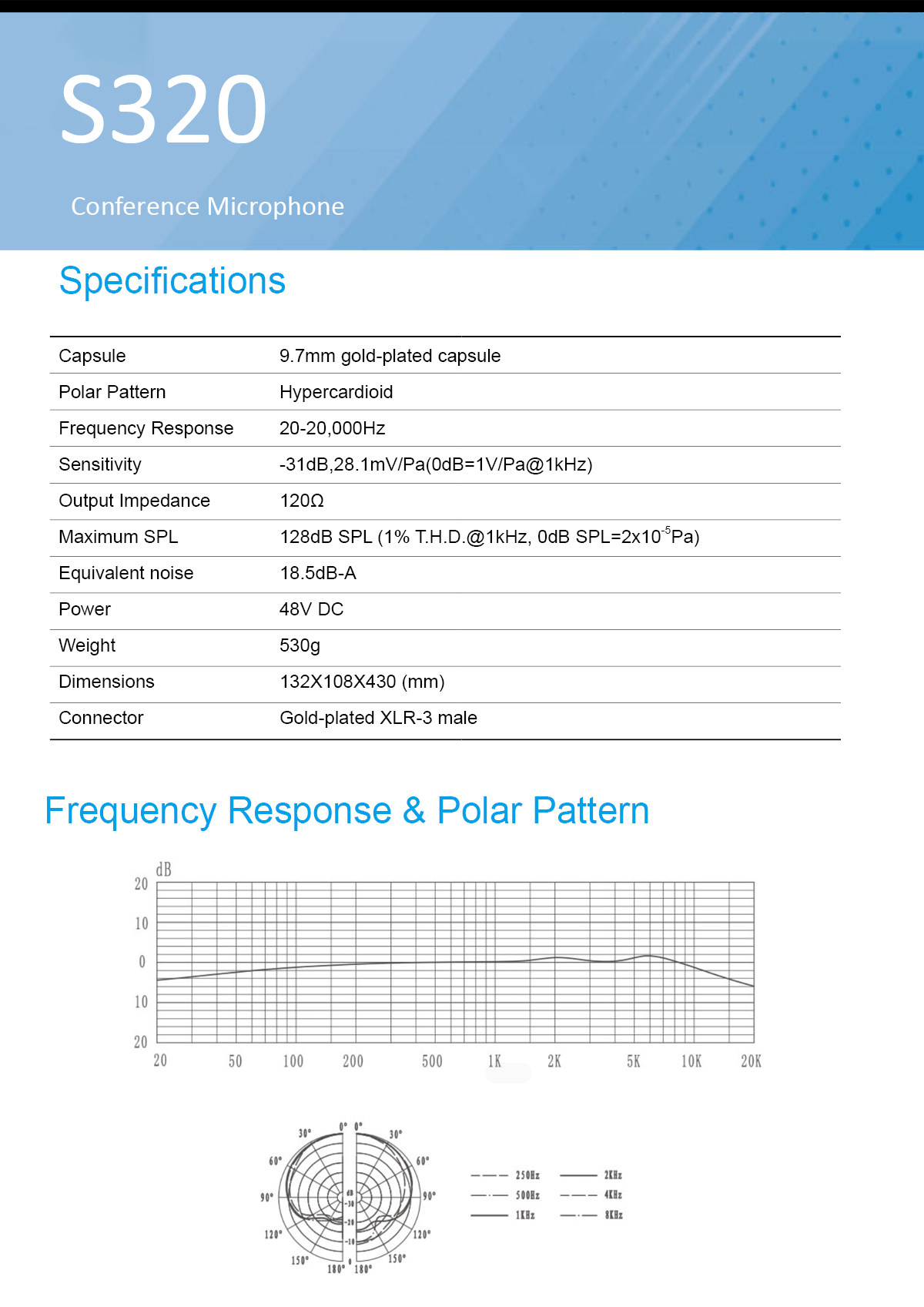

Capsule: 9.7mm gold-plated capsule
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -31dB,28.1mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 120Ω
Maximum SPL: 128dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 18.5dB-A
Power: 48V DC
Weight: 530g
Dimensions: 132X108X430 (mm)
Connector: Gold-plated XLR-3 male
