9.7mm gold-plated capsule
Cardioid
• Gold-plated small diaphragm capsule: 180° rejection ratio reaches more than 15dB, 135° rejection ratio reaches more than 17dB;
• The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling;
• Circuit design to suppress common mode interference, use of high-precision electrical components to reduce thermal noise.
• The gooseneck angle can be adjusted freely.
• The pickup distance is far, and the effective pickup distance can reach more than 1 meter.

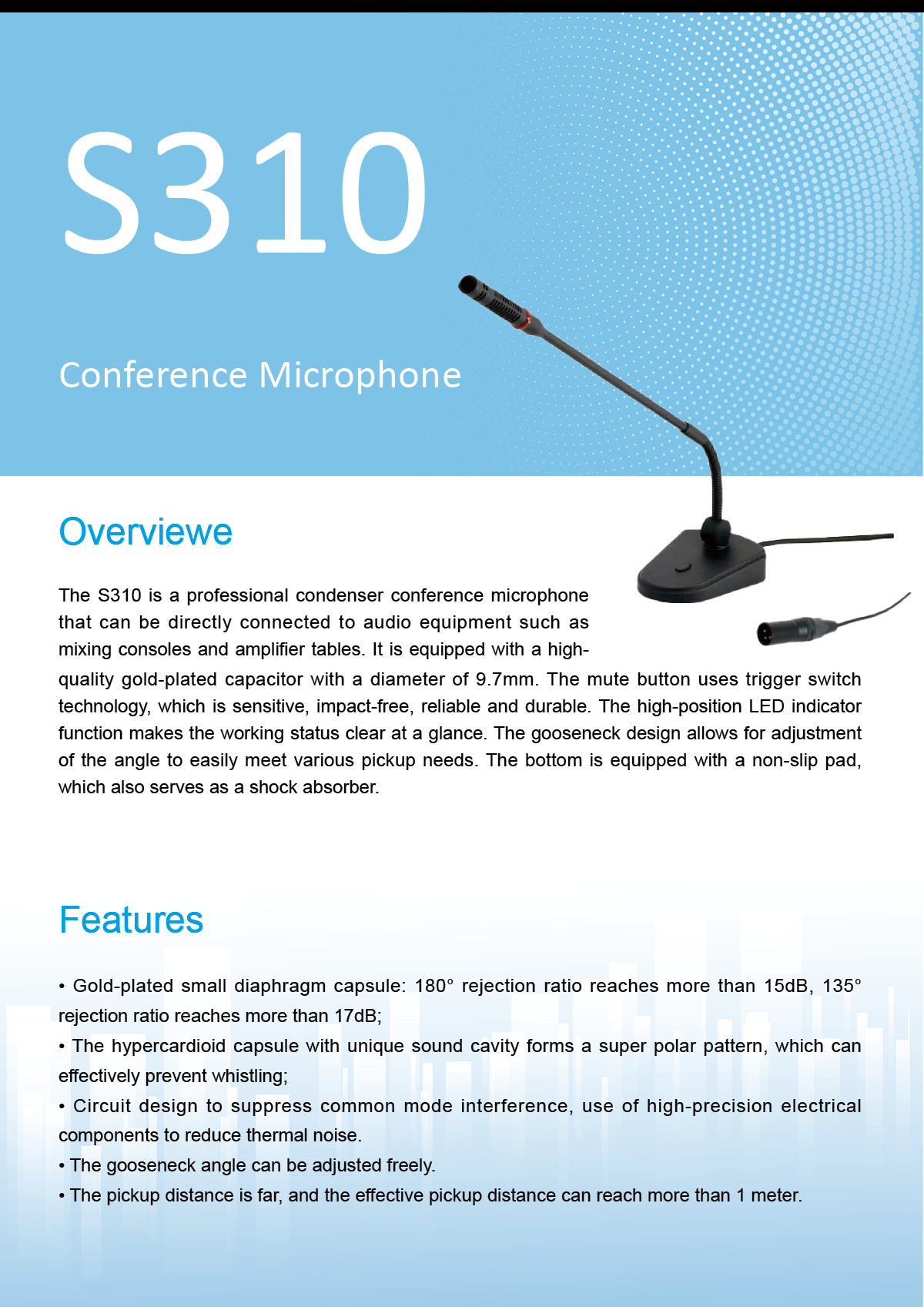

The S310 is a professional condenser conference microphone that can be directly connected to audio equipment such as mixing consoles and amplifier tables. It is equipped with a high-quality gold-plated capacitor with a diameter of 9.7mm. The mute button uses trigger switch technology, which is sensitive, impact-free, reliable and durable. The high-position LED indicator function makes the working status clear at a glance. The gooseneck design allows for adjustment of the angle to easily meet various pickup needs. The bottom is equipped with a non-slip pad, which also serves as a shock absorber.

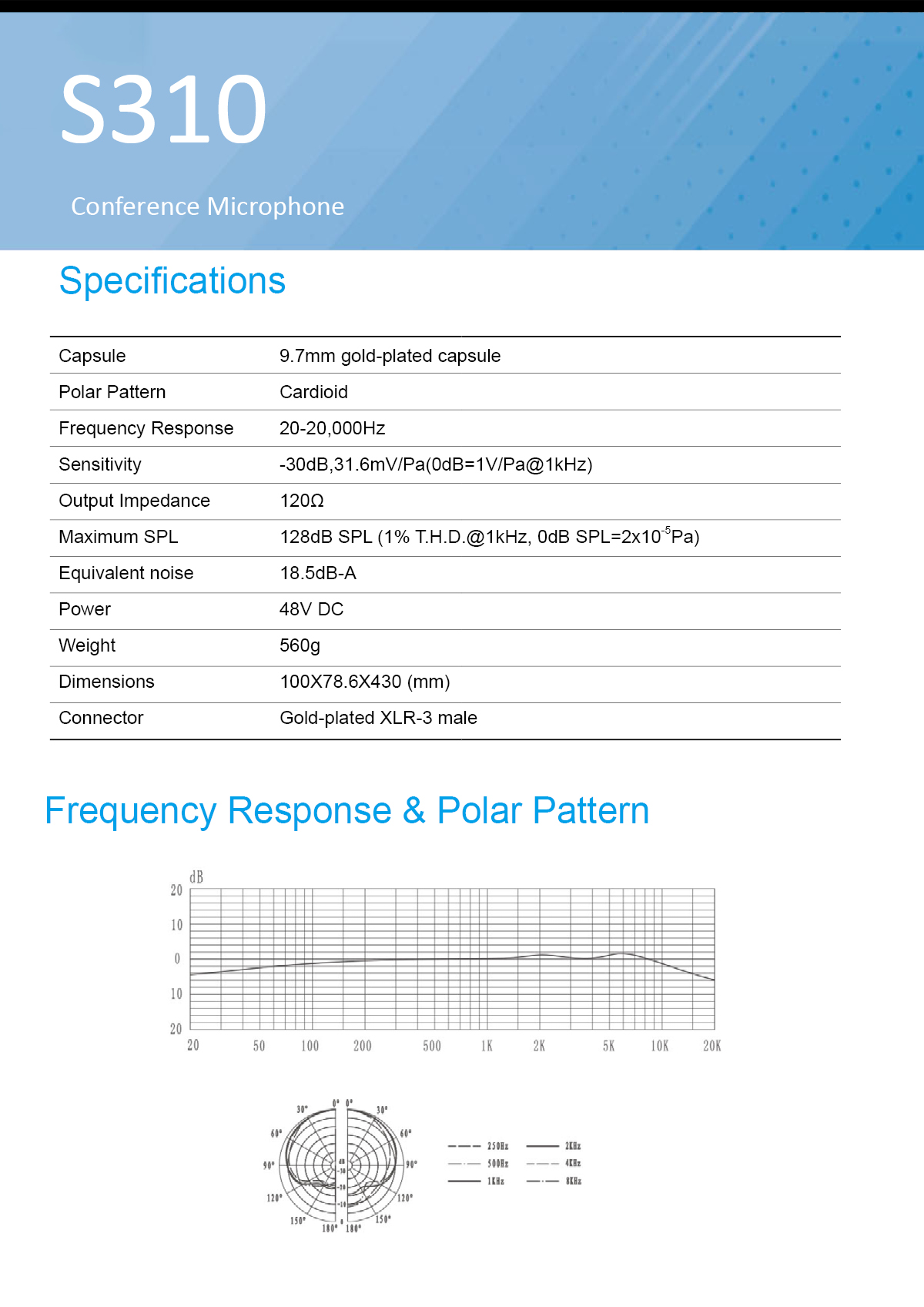

Capsule: 9.7mm gold-plated capsule
Polar Pattern: Cardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 120Ω
Maximum SPL: 128dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 18.5dB-A
Power: 48V DC
Weight: 560g
Dimensions: 100X78.6X430 (mm)
Connector: Gold-plated XLR-3 male
