20mm gold-plated small diaphragm capsule
Hypercardioid
• Gold-plated small diaphragm capsule: 180° rejection ratio reaches more than 15dB, 135° rejection ratio reaches more than 18dB;
• The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling.
• Wide frequency response and high sensitivity.
• Audio FET front stage impedance conversion, low noise, stable performance.
• Self-innovated anti-humidity technology, can be used normally in a variety of climatic environments.
• The appearance of light luxury value, exquisite and compact.

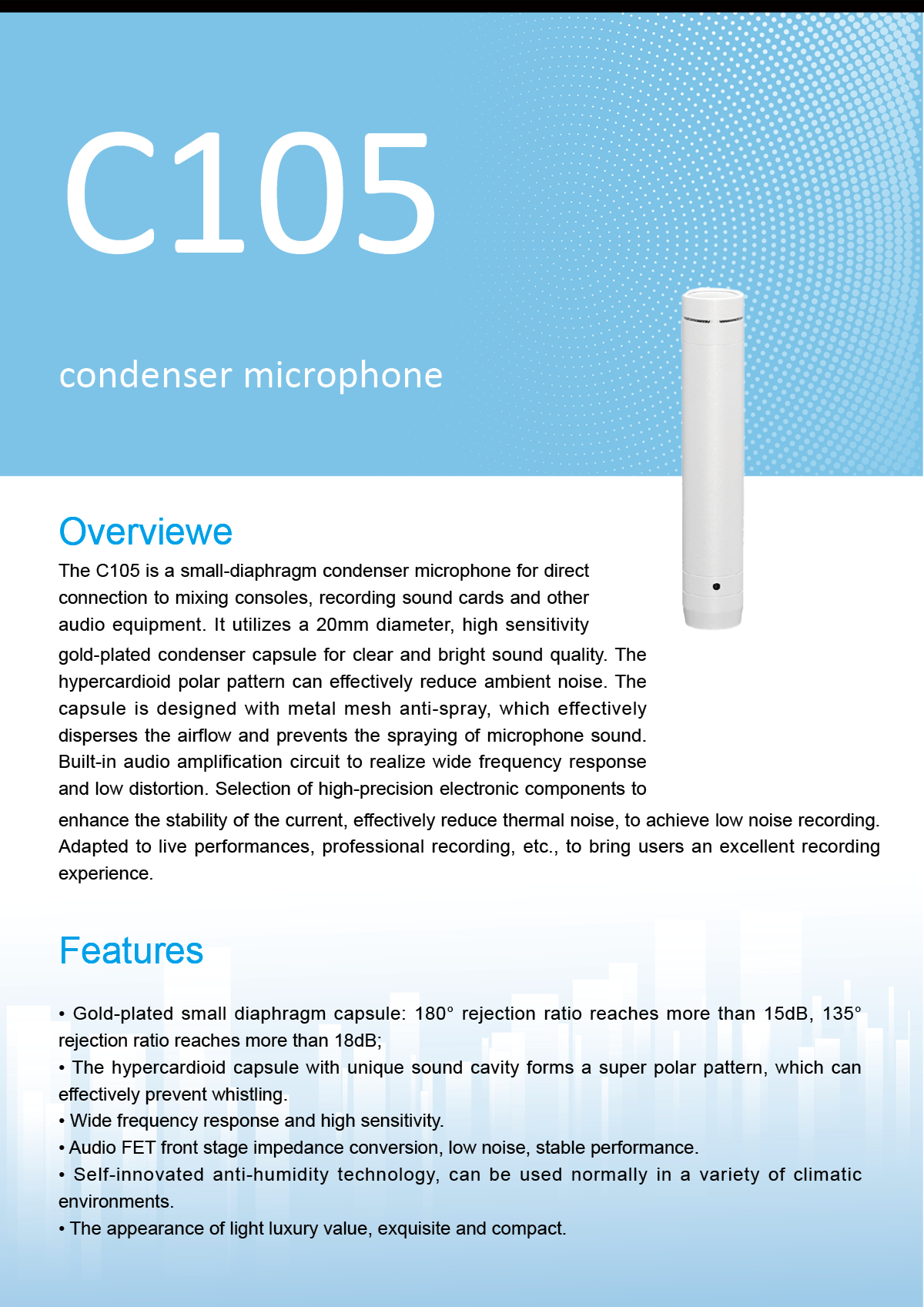

The C105 is a small-diaphragm condenser microphone for direct connection to mixing consoles, recording sound cards and other audio equipment. It utilizes a 20mm diameter, high sensitivity gold-plated condenser capsule for clear and bright sound quality. The hypercardioid polar pattern can effectively reduce ambient noise. The capsule is designed with metal mesh anti-spray, which effectively disperses the airflow and prevents the spraying of microphone sound. Built-in audio amplification circuit to realize wide frequency response and low distortion. Selection of high-precision electronic components to enhance the stability of the current, effectively reduce thermal noise, to achieve low noise recording. Adapted to live performances, professional recording, etc., to bring users an excellent recording experience.

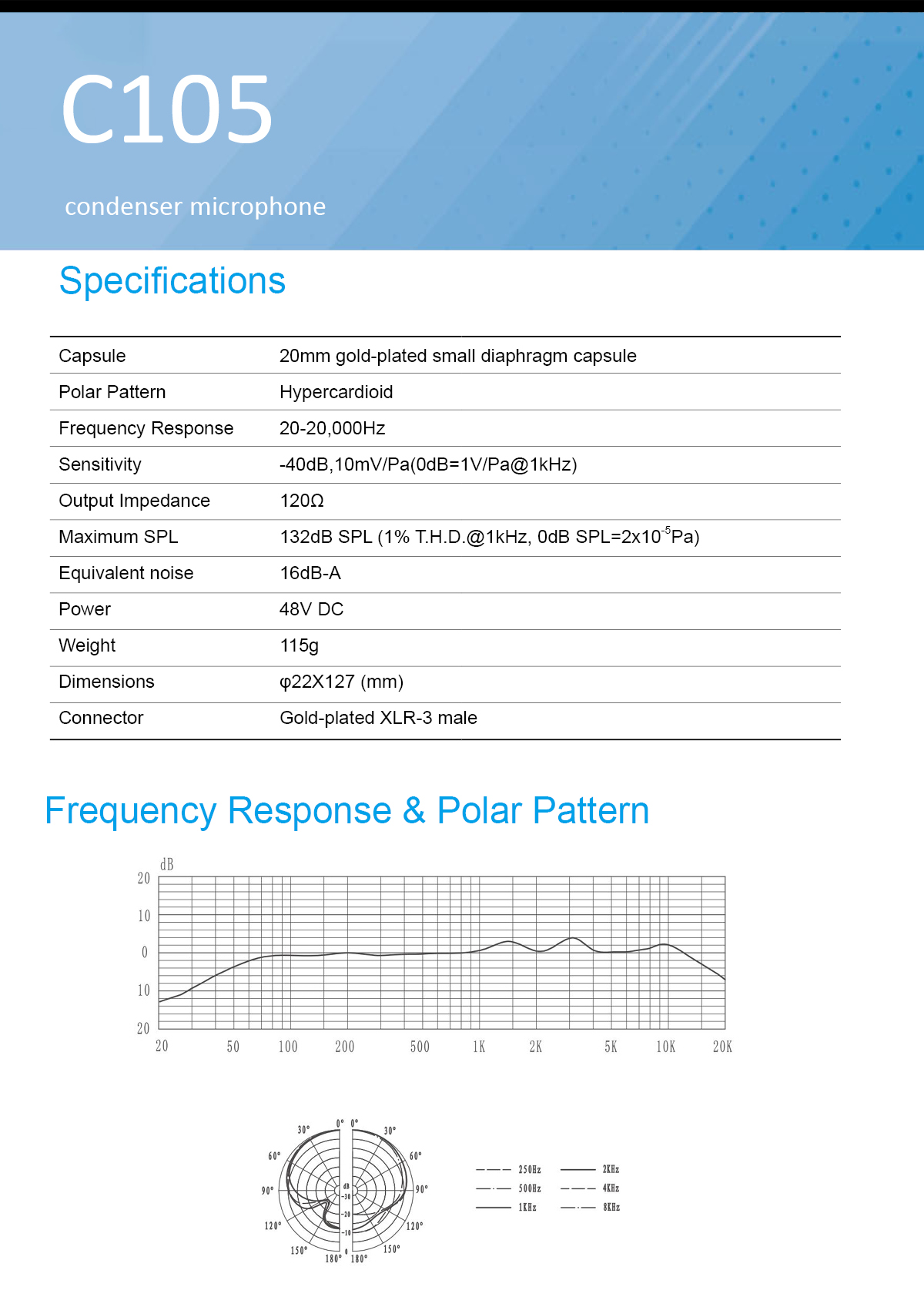

Capsule: 20mm gold-plated small diaphragm capsule
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -40dB,10mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 120Ω
Maximum SPL: 132dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 16dB-A
Power: 48V DC
Weight: 115g
Dimensions: φ22X127 (mm)
Connector: Gold-plated XLR-3 male
