20.2mm gold-plated capsule
Hypercardioid
• Gold-plated diaphragm capsule: 180° rejection ratio reaches more than 17dB, 135° rejection ratio reaches more than 20dB;
• The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling;
• The pickup distance is far, and the effective pickup distance can reach more than 1 meter.
• Circuit design to suppress common mode interference, use of high-precision electrical components to reduce thermal noise.
• Double connecting rod design can realize microphone 0°-90° elevation angle pickup.
• Zinc alloy one-piece molding shell, effectively inhibit all kinds of electromagnetic interference.

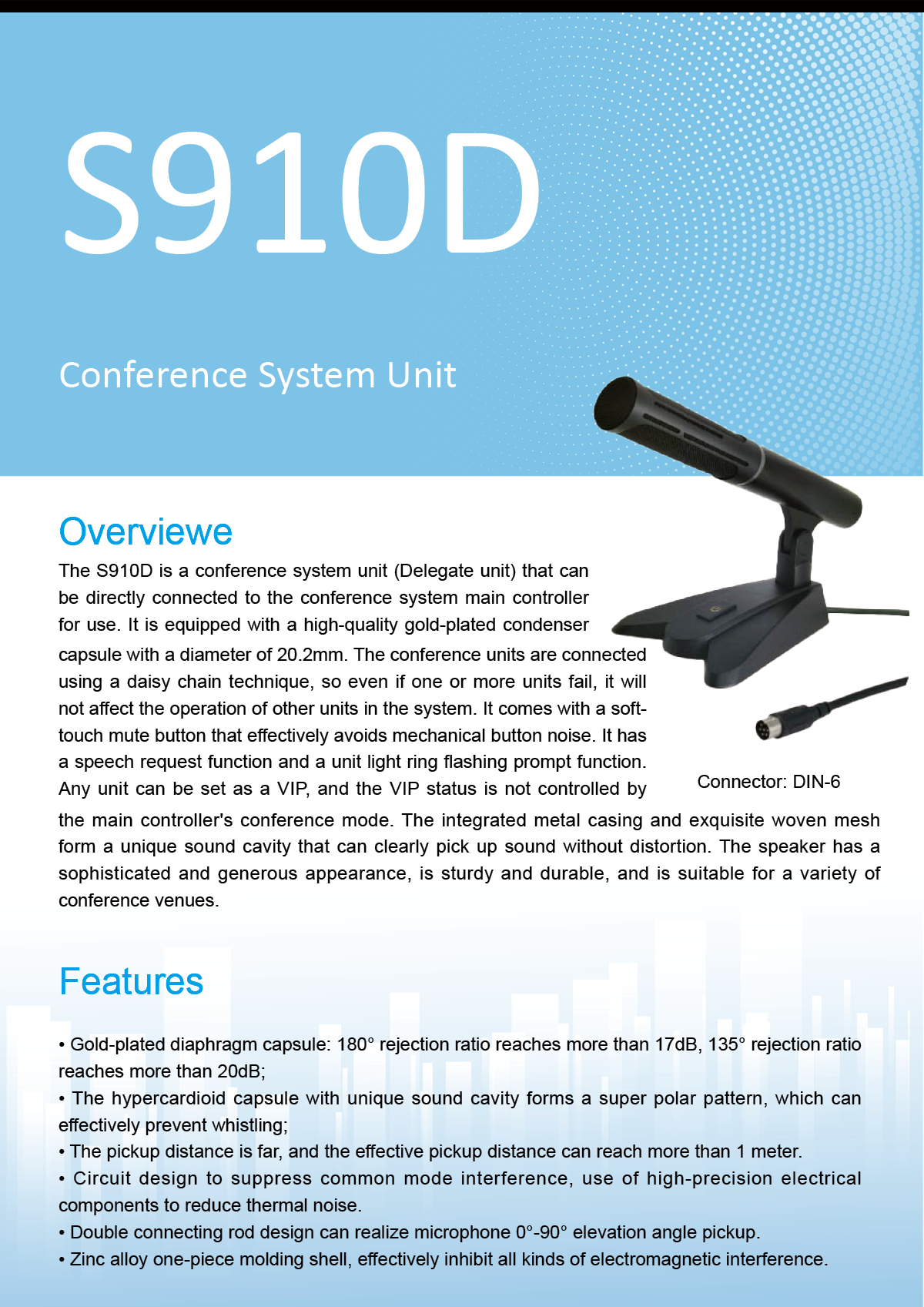

The S910D is a conference system unit (Delegate unit) that can be directly connected to the conference system main controller for use. It is equipped with a high-quality gold-plated condenser capsule with a diameter of 20.2mm. The conference units are connected using a daisy chain technique, so even if one or more units fail, it will not affect the operation of other units in the system. It comes with a soft-touch mute button that effectively avoids mechanical button noise. It has a speech request function and a unit light ring flashing prompt function. Any unit can be set as a VIP, and the VIP status is not controlled by the main controller's conference mode. The integrated metal casing and exquisite woven mesh form a unique sound cavity that can clearly pick up sound without distortion. The speaker has a sophisticated and generous appearance, is sturdy and durable, and is suitable for a variety of conference venues.

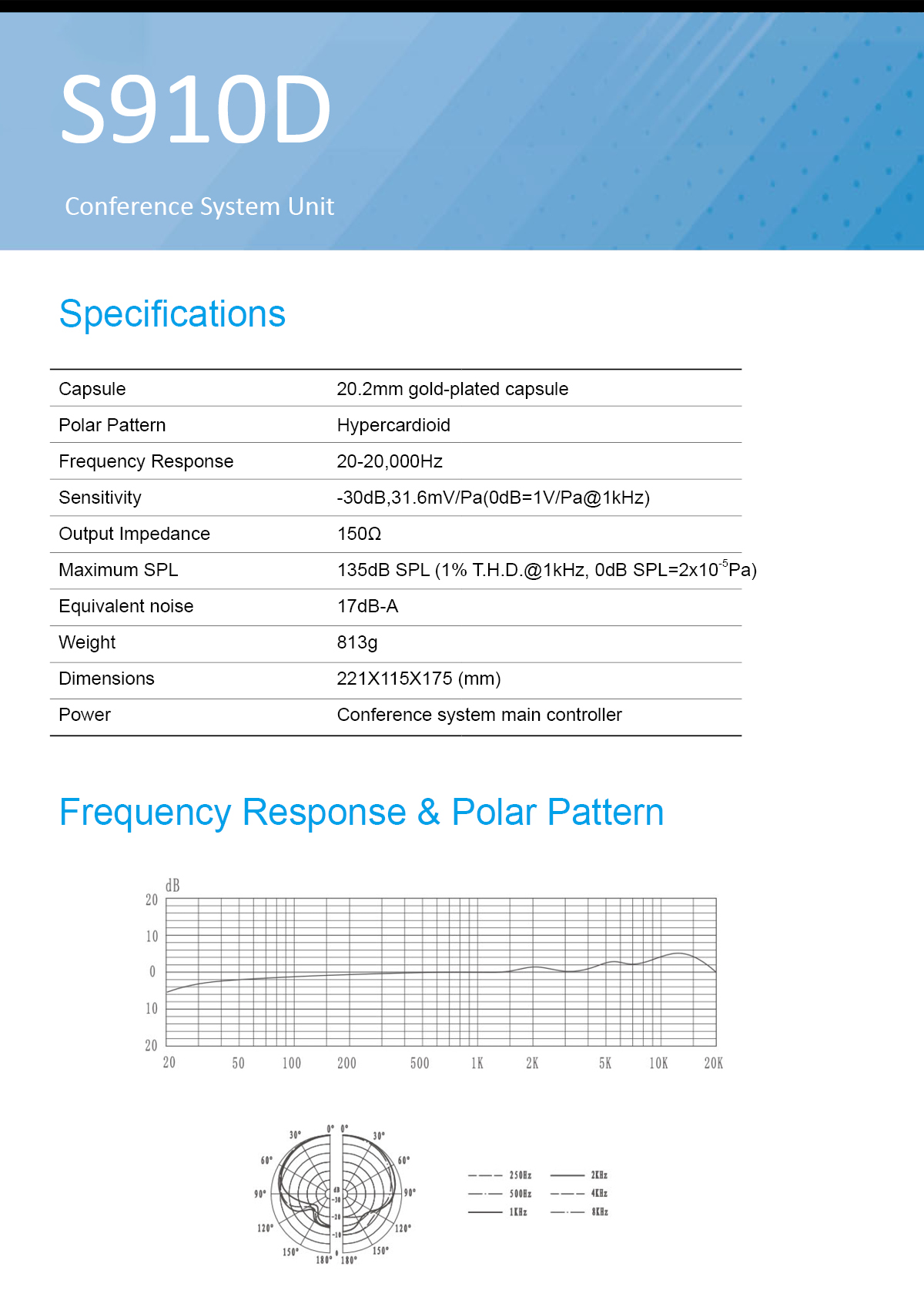

Capsule: 20.2mm gold-plated capsule
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 150Ω
Maximum SPL: 135dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 17dB-A
Weight: 813g
Dimensions: 221X115X175 (mm)
Power: Conference system main controller
