20.2mm gold-plated capsule
Hypercardioid
• Gold-plated diaphragm capsule: 180° rejection ratio reaches more than 17dB, 135° rejection ratio reaches more than 20dB;
• The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling;
• The pickup distance is far, and the effective pickup distance can reach more than 1 meter.
• Circuit design to suppress common mode interference, use of high-precision electrical components to reduce thermal noise.
• Double connecting rod design can realize microphone 0°-90° elevation angle pickup.
• Zinc alloy one-piece molding shell, effectively inhibit all kinds of electromagnetic interference.
The S910DV is a professional condenser conference microphone that can be used with the DDI, which has both chairman and delegate unit functions. This microphone is equipped with a high-sensitivity, quality gold-plated condenser capsule with a diameter of 20.2mm. It comes with a soft-touch mute button that effectively avoids mechanical button noise. The microphone's indicator light ring is soft and bright, making user easy to observe the working status of each microphone in the conference room. The integrated metal housing and exquisite woven mesh form a unique sound cavity that can clearly pick up sound without distortion. The microphone has a sophisticated and generous appearance, is sturdy and durable, and is suitable for a variety of conference venues.

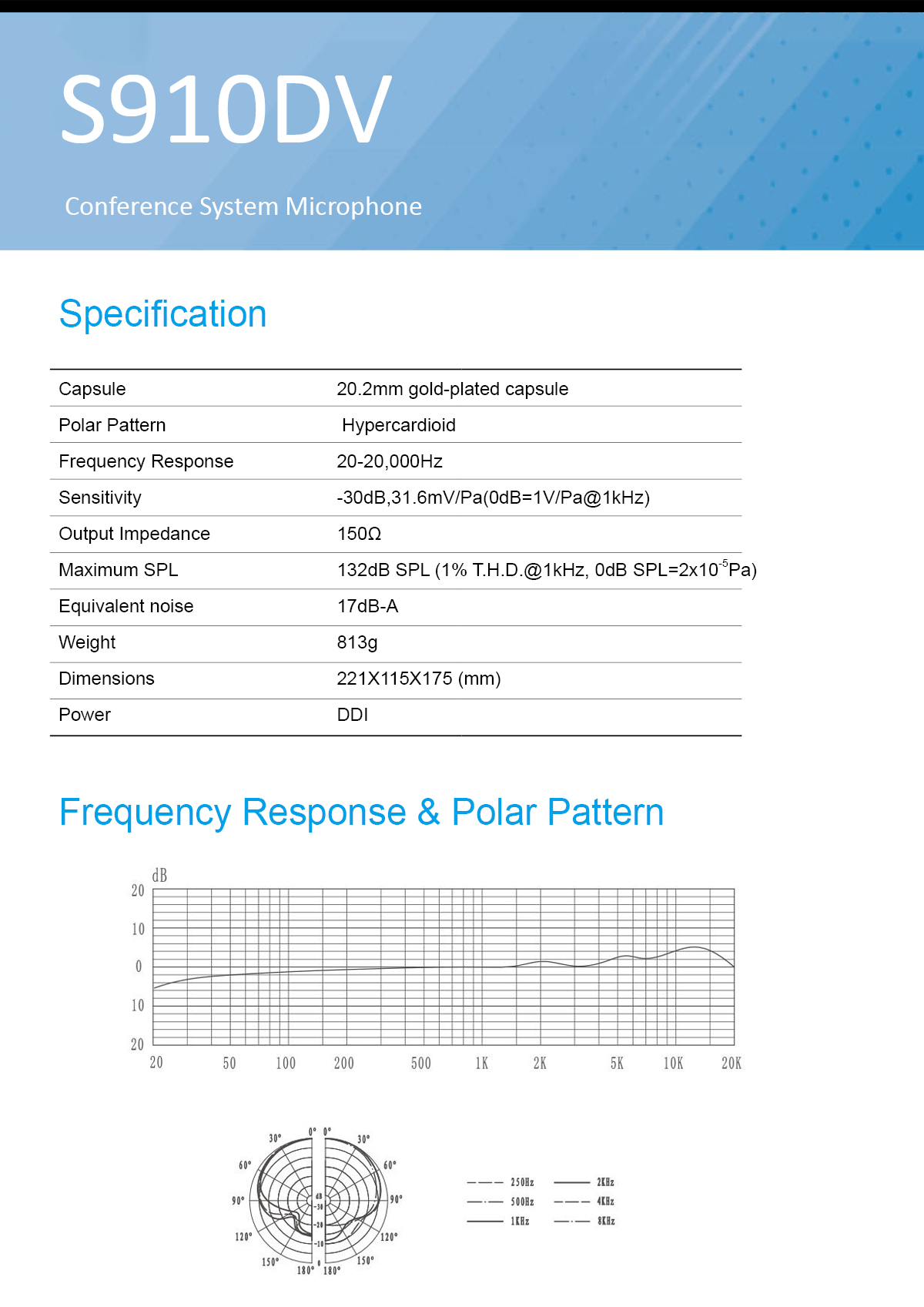

Capsule: 20.2mm gold-plated capsule
Polar Pattern: Hypercardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 150Ω
Maximum SPL: 132dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 17dB-A
Weight: 813g
Dimensions: 221X115X175 (mm)
Power: DDI
