14mm gold-plated capsule
Cardioid
• Gold-plated diaphragm capsule: 180° rejection ratio reaches more than 15dB, 135° rejection ratio reaches more than 17dB;
• The hypercardioid capsule with unique sound cavity forms a super polar pattern, which can effectively prevent whistling;
• Circuit design to suppress common mode interference, use of high-precision electrical components to reduce thermal noise.
• The gooseneck angle can be adjusted freely.
• The pickup distance is far, and the effective pickup distance can reach more than 1 meter.

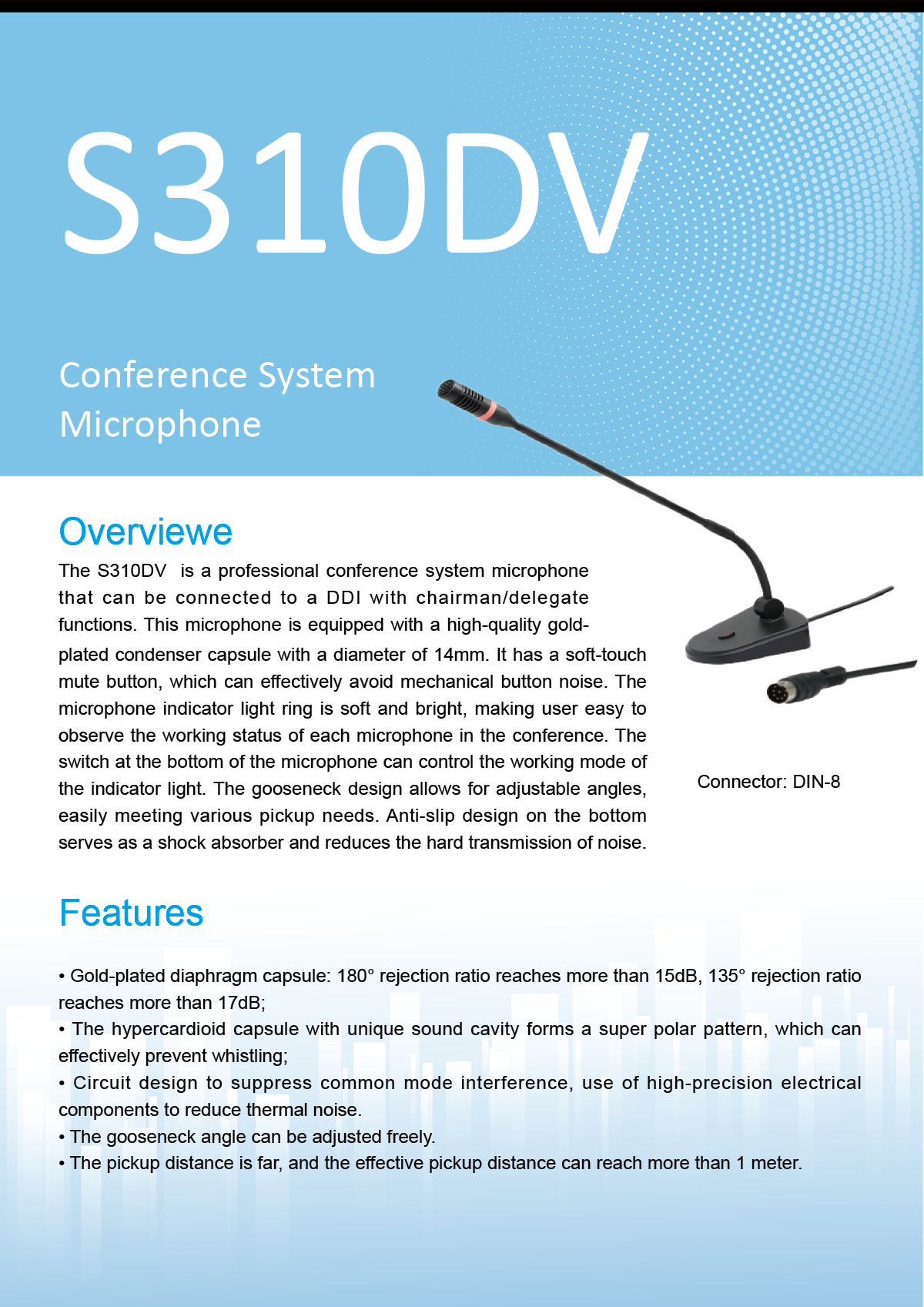

The S310DV is a professional conference system microphone that can be connected to a DDI with chairman/delegate functions. This microphone is equipped with a high-quality gold-plated condenser capsule with a diameter of 14mm. It has a soft-touch mute button, which can effectively avoid mechanical button noise. The microphone indicator light ring is soft and bright, making user easy to observe the working status of each microphone in the conference. The switch at the bottom of the microphone can control the working mode of the indicator light. The gooseneck design allows for adjustable angles, easily meeting various pickup needs. Anti-slip design on the bottom serves as a shock absorber and reduces the hard transmission of noise.

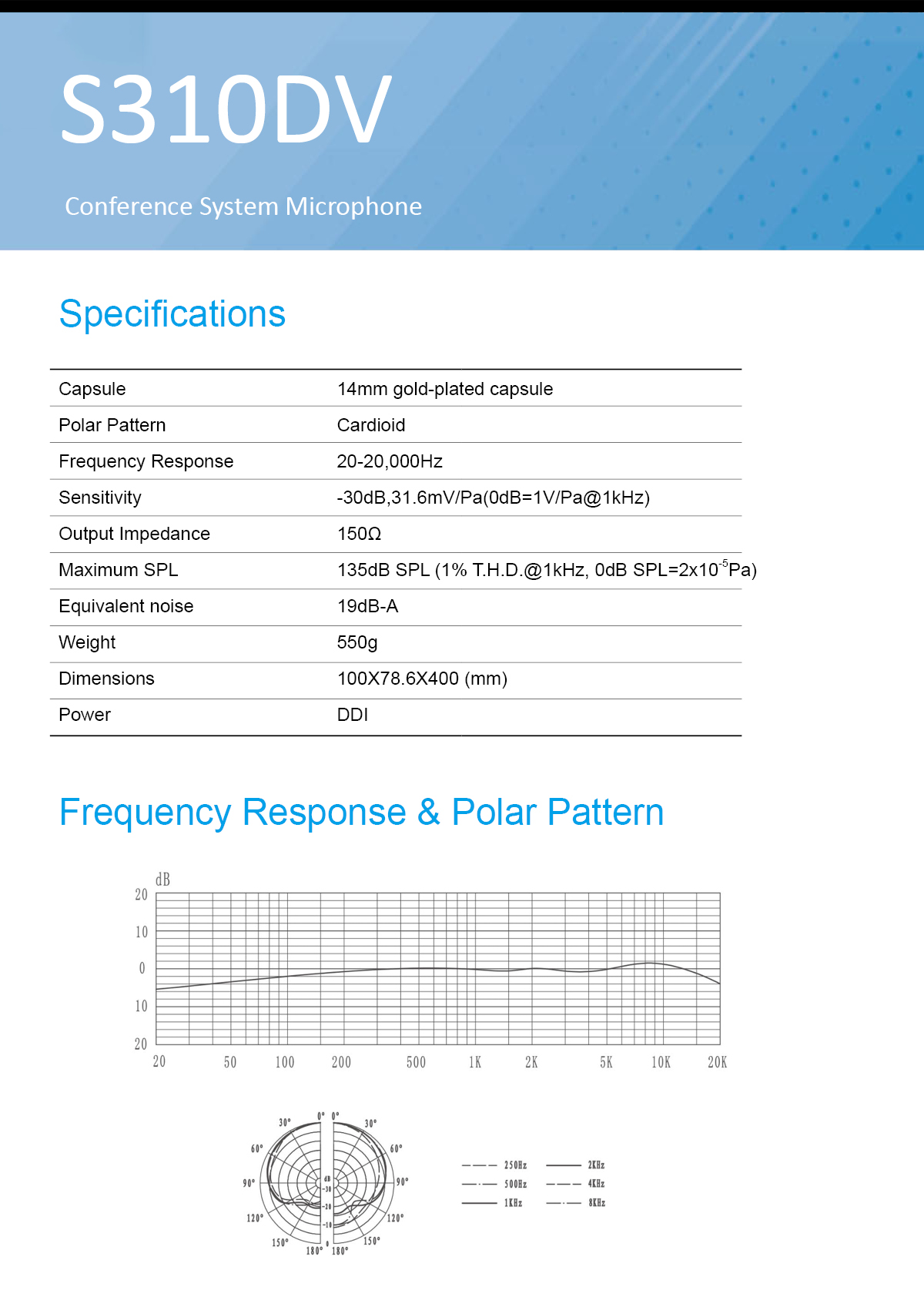

Capsule: 14mm gold-plated capsule
Polar Pattern: Cardioid
Frequency Response: 20-20,000Hz
Sensitivity: -30dB,31.6mV/Pa(0dB=1V/Pa@1kHz)
Output Impedance: 150Ω
Maximum SPL: 135dB SPL (1% T.H.D.@1kHz, 0dB SPL=2x10⁻⁵Pa)
Equivalent noise: 19dB-A
Weight: 550g
Dimensions: 100X78.6X400 (mm)
Power: DDI
