9.7mm gold-plated capsule
Cardioid
• Gold-plated capsule, 180 ° rejection ratio of more than 17dB, 135 ° rejection ratio of more than 15dB.
• Cardioid capsule with unique sound cavity to form a super polar pattern, which can effectively prevent whistling.
• Support multi-sampling rate/bit depth.
• High-precision digital circuitry, low thermal noise, stable performance.
• High compatibility, zero delay, clear voice.
• Thin body design for easy carrying.
• Shielded from RF interference.

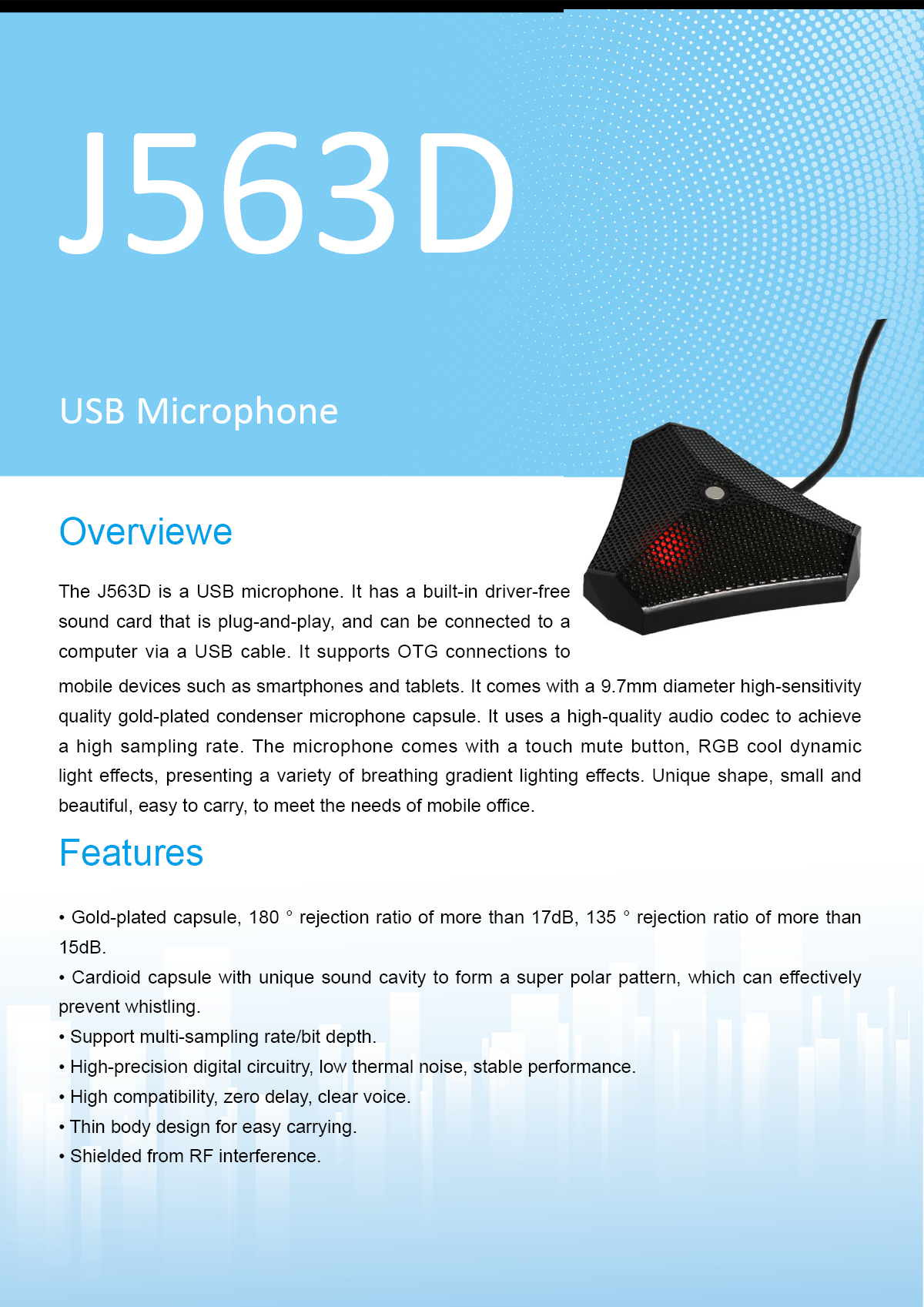

The J563D is a USB microphone. It has a built-in driver-free sound card that is plug-and-play, and can be connected to a computer via a USB cable. It supports OTG connections to mobile devices such as smartphones and tablets. It comes with a 9.7mm diameter high-sensitivity quality gold-plated condenser microphone capsule. It uses a high-quality audio codec to achieve a high sampling rate. The microphone comes with a touch mute button, RGB cool dynamic light effects, presenting a variety of breathing gradient lighting effects. Unique shape, small and beautiful, easy to carry, to meet the needs of mobile office.

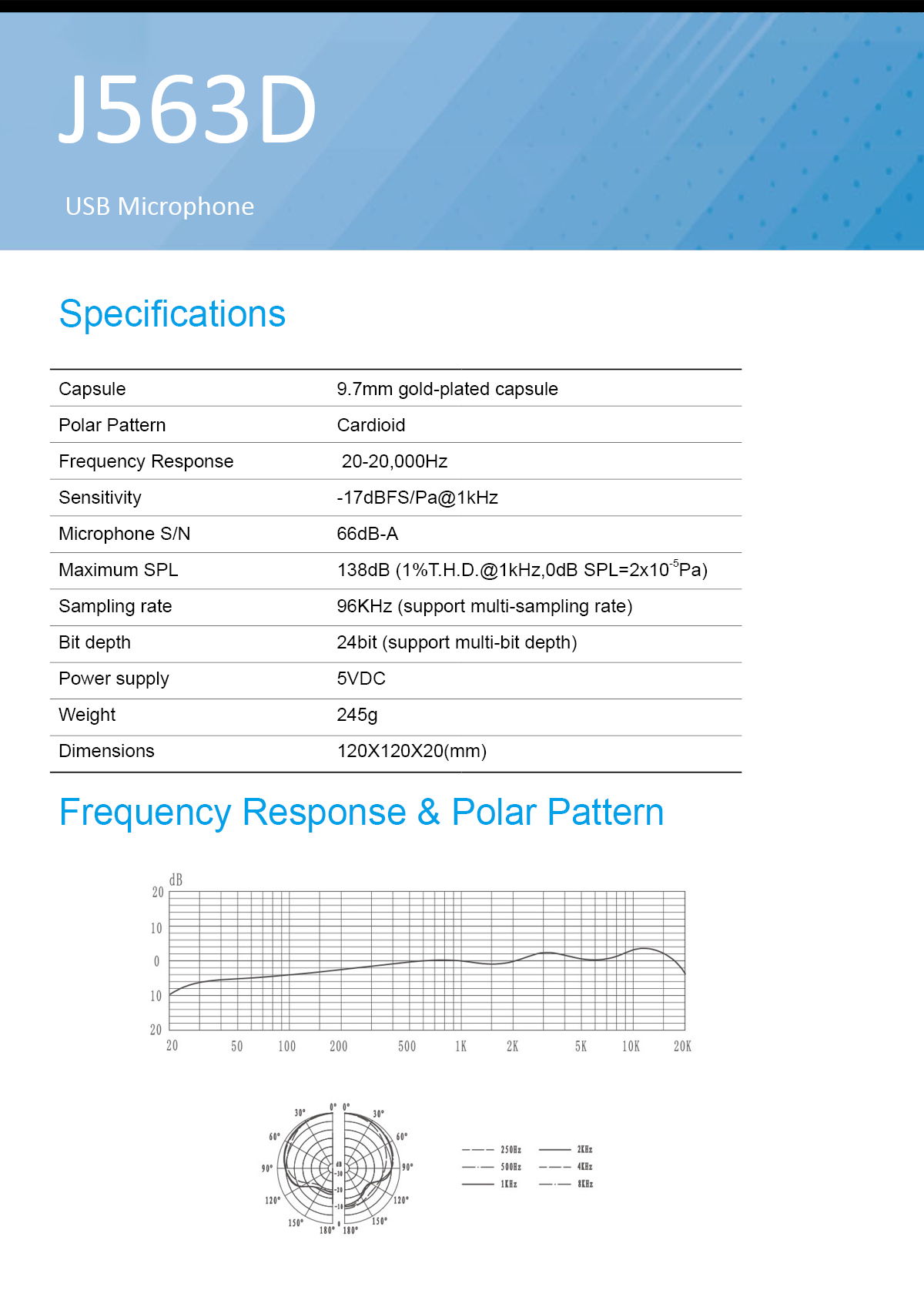

Capsule: 9.7mm gold-plated capsule
Polar Pattern: Cardioid
Frequency Response: 20-20,000Hz
Sensitivity: -17dBFS/Pa@1kHz
Microphone S/N: 66dB-A
Maximum SPL: 138dB (1%T.H.D.@1kHz,0dB SPL=2x10⁻⁵Pa)
Sampling rate: 96KHz (support multi-sampling rate)
Bit depth: 24bit (support multi-bit depth)
Power supply: 5VDC
Weight: 245g
Dimensions: 120X120X20(mm)
